Shop All Vacuum Pads
Schmalz

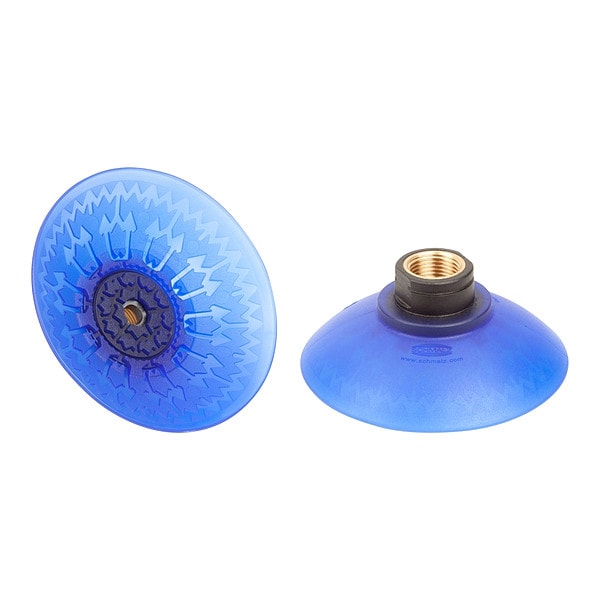

Bell Suction Cup for Sheet handling
Mfr # 10.01.19.00141
Zoro # G511471686
$38.85
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pad Type Deep
- Pad Material Elastodur ED
- Pad Height 34.5 mm
- Port Size 3/8 in
- Weight 35 g
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Schmalz
- MFR # 10.01.19.00141
- Zoro # G511471686
- Country of Origin Germany
- Category Vacuum Pads
Dimensions
Pad Height | 34.5 mm |
Port Size | 3/8 in |
Outside Diameter | 80 mm |
Overall Height | 46.5 mm |
Pad Diameter | 92.2 mm |
Details
Pad Type | Deep |
Pad Material | Elastodur ED |
Weight | 35 g |
Series | SAX |
Durometer | 85 A |
Number of Folds | 0 |
For Use With | Handling Sheet Metal |
Port Type | G |
Hardness | 85 Shore A |
Stroke | 13.9 mm |
Item | Bell Suction Cup for Sheet handling |
Pad Color | Blue |
Description
Item Vacuum Pad Assembly, Durometer 85 A, For Use With Handling Sheet Metal, Number of Folds 0, Outside Diameter 80 mm, Overall Height 46.5 mm, Pad Color Blue, Pad Diameter 92.2 mm, Hardness 85 Shore A, Pad Height 34.5 mm, Pad Material Elastodur ED, Pad Type Deep, Port Size 3/8 in, Port Type G, Series SAX, Stroke 13.9 mm, Weight 35 g
