Shop All Vacuum Pads
Schmalz

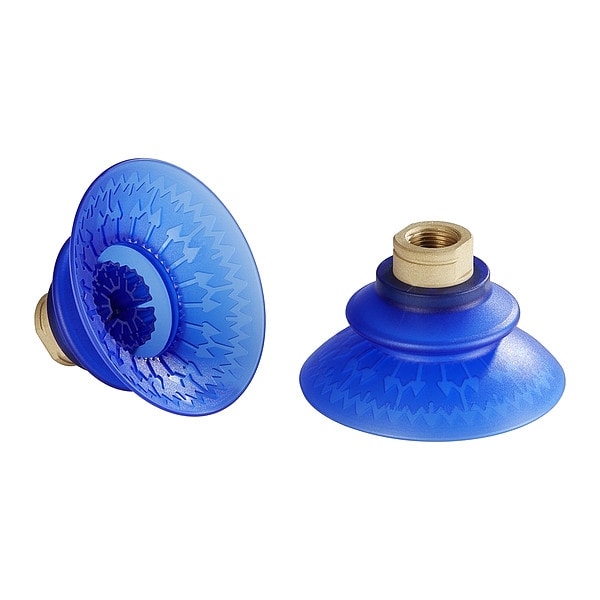

Bell Suction cup for Curved Sheet metal

product price: $46.65
/ea
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Pad Type Bellows
  • Pad Material Elastodur ED
  • Pad Height 50 mm
  • Port Size 3/8 in
  • Number of Folds 1.5
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Pad Height 50 mm
Port Size 3/8 in
Outside Diameter 80 mm
Pad Diameter 91 mm
Overall Height 63 mm

Details

Pad Type Bellows
Pad Material Elastodur ED
Number of Folds 1.5
Port Type NPT
For Use With Curved Sheet Metal
Durometer 85 A
Stroke 22.2 mm
Hardness 85 Shore A
Series SAXB
Weight 72.8 g
Item Bell Suction cup for Curved Sheet metal
Adapter Material Brass
Pad Color Blue

Description

Item Vacuum Pad Assembly, Adapter Material Brass, Durometer 85 A, For Use With Curved Sheet Metal, Number of Folds 1.5, Outside Diameter 80 mm, Overall Height 63 mm, Pad Color Blue, Pad Diameter 91 mm, Hardness 85 Shore A, Pad Height 50 mm, Pad Material Elastodur ED, Pad Type Bellows, Port Size 3/8 in, Port Type NPT, Series SAXB, Stroke 22.2 mm, Weight 72.8 g
