Shop All Vacuum Ejectors
Schmalz

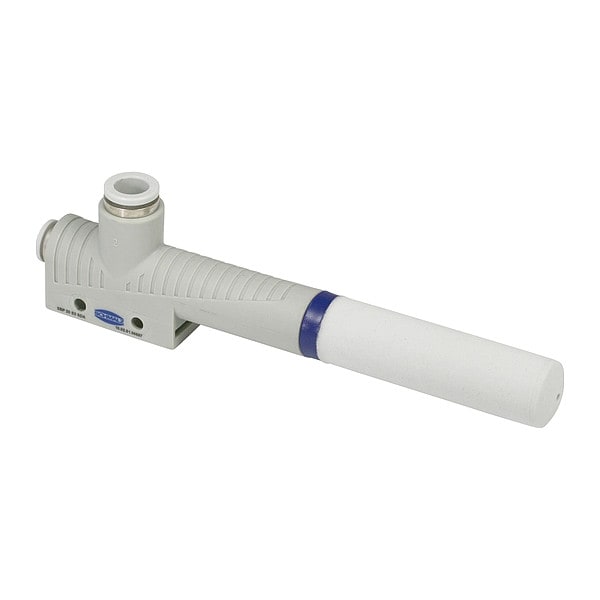

Basic Ejector
Mfr # 10.02.01.00567
Zoro # G211471276
product price: $194.99
/ea
Free Shipping & Returns
$194.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pressure Port Size 8 mm
- Vacuum Port Size 10 mm
- Minimum Operating Temperature 0 Degrees C
- Series SBP
- Minimum Vacuum Pressure 3 bar
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Schmalz
- MFR # 10.02.01.00567
- Zoro # G211471276
- Country of Origin Germany
- Category Vacuum Ejectors
Dimensions
| Pressure Port Size | 8 mm |
| Vacuum Port Size | 10 mm |
| Overall Length | 168 mm |
| Nozzle Diameter | 2 mm |
| Overall Height | 45.5 mm |
| Overall Depth | 20 mm |
Details
| Minimum Operating Temperature | 0 Degrees C |
| Series | SBP |
| Minimum Vacuum Pressure | 3 bar |
| Actuation Mechanism | Pressure |
| Maximum Vacuum Pressure | 6 bar |
| Air Consumption | 6.96 cfm |
| Item | Basic Ejector |
| Maximum Supply Pressure | 6 bar |
| Maximum Flow Rate | 4.48 cfm |
| Maximum Operating Temperature | 60 Degrees C |
| Minimum Supply Pressure | 3 bar |
| Weight | 50 g |
| Pressure Port Type | Tube |
| Vacuum Port Type | Tube |
Description
Item Basic Ejector, Actuation Mechanism Pressure, Air Consumption 6.96 cfm, Maximum Flow Rate 4.48 cfm, Maximum Operating Temperature 60 Degrees C, Maximum Supply Pressure 6 bar, Maximum Vacuum Pressure 6 bar, Minimum Operating Temperature 0 Degrees C, Minimum Supply Pressure 3 bar, Minimum Vacuum Pressure 3 bar, Nozzle Diameter 2 mm, Overall Depth 20 mm, Overall Height 45.5 mm, Overall Length 168 mm, Pressure Port Gender Not Applicable, Pressure Port Size 8 mm, Pressure Port Type Tube
