Shop All Diaphragm Pumps
Sandpiper

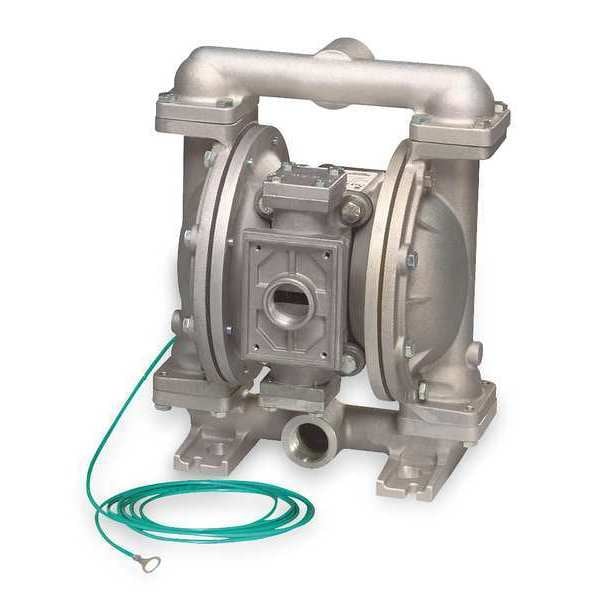

Double Diaphragm Pump, Aluminum, Natural Gas Operated, Buna N, 45 GPM
Mfr # G1FB1ABTXNSX00.
Zoro # G1834962
product price: $2,224.99
/ea
Free Shipping & Returns
$2,224.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Housing Material - Pumps Aluminum
- Diaphragm Material - Pumps Buna N
- Max. Flow 45 gpm
- Pump Operation Type Gas
- Max. Temp - Pumps 190 Degrees F
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Sandpiper
- MFR # G1FB1ABTXNSX00.
- Zoro # G1834962
- Country of Origin United States
- Category Diaphragm Pumps
Dimensions
Inlet/Outlet Size | 1 in |
Air Inlet Size | 1/2 in FNPT |
Height | 12 23/32 in |
Length | 10 3/8 in |
Manufacturers Warranty Length | 5 yr |
Width | 10 1/4 in |
Max. Dia. Solids | 1/4 in |
Overall Width | 10.3 in |
Overall Height | 12.7 in |
Overall Length | 10.3 in |
Solid Diameter (Maximum) | 0.25 in |
Media Discharge Connection Size | 1 in |
Media Intake Connection Size | 1 in |
Air Intake Connection Size | 1 in |
Fluid Connection Size | 1 in |
Description
Double Diaphragm Pump, Air Consumption (Maximum) 40 scfm, Air Intake Connection Size 1 in, Air Intake Connection Type NPT, Check Seat Material PTFE, Diaphragm Material Buna-N, Feet of Head (Maximum) 231 ft, Flow Rate (Maximum) 45 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type NPT, Media Discharge Location Center, Top, Media Intake Connection Size 1 in, Media Intake Connection Type NPT, Media Intake Location Bottom, Center
