Sandpiper

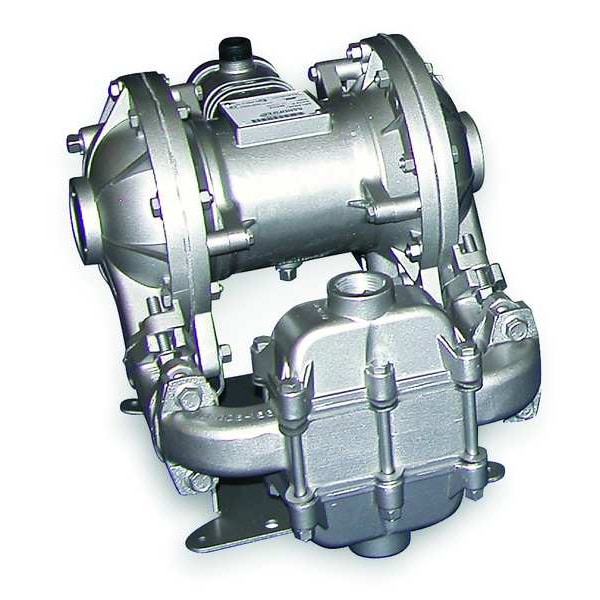

Double Diaphragm Pump, Aluminum, Air Operated, Santoprene, 42 GPM
Mfr # SB1,SS5A.
Zoro # G1464425
product price: $1,568.99
/ea
Free Shipping & Returns
$1,568.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Housing Material - Pumps Aluminum
- Diaphragm Material - Pumps Santoprene(R)
- Max. Flow 42 gpm
- Pump Operation Type Air
- Max. Temp - Pumps 275 Degrees F
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Sandpiper
- MFR # SB1,SS5A.
- Zoro # G1464425
- Country of Origin United States
- Category Diaphragm Pumps
Dimensions
Inlet/Outlet Size | 1 in |
Air Inlet Size | 1/2 in FNPT |
Height | 14 7/16 in |
Length | 13 9/32 in |
Width | 11 3/4 in |
Manufacturers Warranty Length | 1 yr |
Max. Dia. Solids | 1/4 in |
Overall Width | 11.8 in |
Overall Length | 13.3 in |
Overall Height | 14.4 in |
Overall Size | 13.3 in x 11.8 in x 14.4 in |
Air Intake Connection Size | 1/2 in |
Media Discharge Connection Size | 1 in |
Media Discharge Size | 1 in |
Media Intake Size | 1 in |
Solid Diameter (Maximum) | 0.25 in |
Fluid Connection Size | 1 in |
Media Intake Connection Size | 1 in |
Description
Double Diaphragm Pump, Air Consumption (Maximum) 50 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type FNPT, Check Seat Material Ryton, Diaphragm Material Santoprene, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 42 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type NPT, Media Discharge Location Center, Top, Media Intake Connection Size 1 in, Media Intake Connection Type NPT, Media Intake Location Bottom, Center
