Shop All Enclosure Fans
Saginaw Control & Engineering

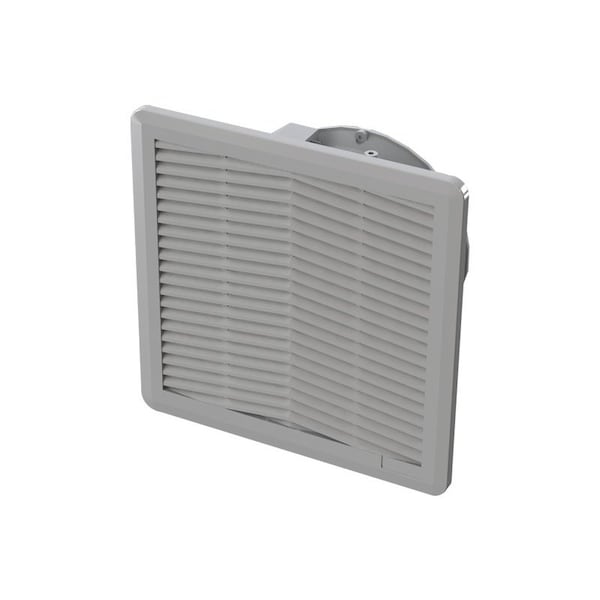

Fan Assembly 24VDC Type 12 RAL 7035
Mfr # SCE-N12FA66-24VLG
Zoro # G611164730
product price: $536.99
/ea
Free Shipping & Returns
$536.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Application Easy to install snap fit design for use in enclosures that require cooling but have limited space in NEMA 1 and 12 applications. Housing and grille are made of light gray heat resistant (ABS-FR), self-extinguishing material. Fans are available in 115 volt AC, 60/50 Hertz (HZ) single phase or 24 volt DC. Filter Class G3 EN 779 - Filter Fire Class F1 DIN 53438 Self-extinguishing.
- Depth 4.90"
- Voltage 24V DC
- Height 9.80"
- Width 9.80"
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Saginaw Control & Engineering
- MFR # SCE-N12FA66-24VLG
- Zoro # G611164730
- Country of Origin Malta
- Category Enclosure Fans
Dimensions
Depth | 4.90" |
Height | 9.80" |
Width | 9.80" |
Details
Item | Filter Fan. Type 12 RAL 7035 |
Application | Easy to install snap fit design for use in enclosures that require cooling but have limited space in NEMA 1 and 12 applications. Housing and grille are made of light gray heat resistant (ABS-FR), self-extinguishing material. Fans are available in 115 volt AC, 60/50 Hertz (HZ) single phase or 24 volt DC. Filter Class G3 EN 779 - Filter Fire Class F1 DIN 53438 Self-extinguishing. |
Voltage | 24V DC |
Standards | Type 12; cULus File Component Recognized SA32278; cULus Listed E498756 |
