Ruland

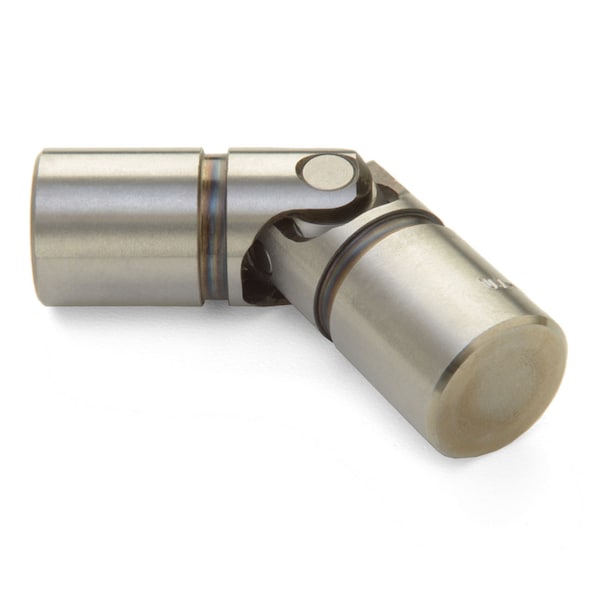

Single U-Joint Kit, Machinable, 1.120" (28.4 mm) OD, Steel
Mfr # US18-XX-XX-F
Zoro # G900675886
product price: $142.99
/ea
Free Shipping & Returns
$142.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Type Single, Friciton Bearing
- Outside Dia. 1.120 in (28.4 mm)
- Lubrication LUBRIPLATE No. 1200-2
- Material Alloy Steel
- SAE or Metric Inch/Metric
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Ruland
- MFR # US18-XX-XX-F
- Zoro # G900675886
- UPC # 63452930548
- Country of Origin United States
- Category Universal Joints
Dimensions
Outside Dia. | 1.120 in (28.4 mm) |
Length | 3.500 in (88.9 mm) |
Yoke Length (LY) | 1.750 in (44.5 mm) |
Hub Depth | 1.220 in (31.0 mm) |
Details
Type | Single, Friciton Bearing |
Lubrication | LUBRIPLATE No. 1200-2 |
Material | Alloy Steel |
SAE or Metric | Inch/Metric |
Weight | 0.51 lbs |
B1 Shaft Penetration | 1.220 in (31.0 mm) |
Max Square or Hex Bore (Metric) | 14 mm |
Max Blind Bore (Metric) | 22 mm |
Rated Torque | 650 in-lb (73.4 Nm) |
Style | Machinable Bore |
Max Blind Bore (Inch) | 0.8750 in |
Max Round Bore With Key (Metric) | 16mm Bore, 5mm Keyway |
Max Round Bore (Metric) | 15 mm |
Max Operating Angle | 45° |
Max Round Bore (Inch) | 0.625 in |
Matching Boot | UBOOT18/29-NI-KIT |
Max Square or Hex Bore (Inch) | 0.6250 in |
Max Round Bore With Key (Inch) | 5/8" Bore, 3/16" Keyway |
Max. Torque | 3250 in-lb (367.2 Nm) |
B2 Shaft Penetration | 1.220 in (31.0 mm) |
Description
This Ruland machinable bore single friction bearing universal joint has a 1.120" outer diameter and 3.500" length. The design allows the user to put a bore size and/or geometry of their choice into each yoke or affix it directly to a surface by welding or some other method of their choice. It is best suited for applications requiring a short length and high torque (when compared to double universal joints of an equivalent OD). This single universal joint is made of a block, two pins, and two yokes. These components are manufactured to tight tolerances using proprietary processes that ensure smooth operation and high misalignment accommodation up to 45°, which is a significant improvement over commodity style single universal joints. It is made from high grade alloy steel for high torque capabilities. The user can add a boot to protect the joint from unwanted contaminants and increase service life. This single friction bearing universal joint is manufactured in the USA.
