Shop All Universal Joints
Ruland
Single U-Joint, 5/16" x 5/16" Bores, 0.745" OD, Steel
Mfr # USS12-5-5-F
Zoro # G900674506
product price: $219.99
/ea
Free Shipping & Returns
$219.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Type Single, Friciton Bearing
- Outside Dia. 0.745 in
- Bore 0.3125 in x 0.3125 in
- Setscrew #10-32
- SAE or Metric Inch
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Ruland
- MFR # USS12-5-5-F
- Zoro # G900674506
- UPC # 63452933721
- Country of Origin United States
- Category Universal Joints
Dimensions
Outside Dia. | 0.745 in |
Length | 2.688 in |
Yoke Length (LY) | 1.344 in |
Set Screw Size | #10-32 |
Hub Depth | 0.950 in |
Details
Type | Single, Friciton Bearing |
Bore | 0.3125 in x 0.3125 in |
Setscrew | #10-32 |
SAE or Metric | Inch |
Material | Alloy Steel |
Lubrication | LUBRIPLATE No. 1200-2 |
Weight | 0.224 lbs |
Max. Torque | 1250 in-lb |
B2 Shaft Penetration | 0.950 in |
Matching Boot | UBOOT12/19-NI-KIT |
Max Operating Angle | 45° |
Rated Torque | 250 in-lb |
Bore Tolerance | +0.0010 in / -0.0000 in |
B1 Shaft Penetration | 0.950 in |
Style | Roud Bore, Set Screw |
Description

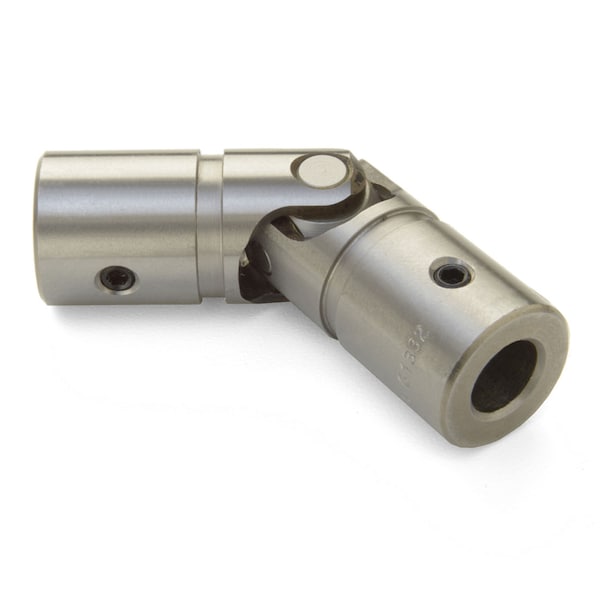

This Ruland single friction bearing universal joint with set screws has 0.3125" x 0.3125" bores, a 0.745" outer diameter, and a 2.688" length. It is best suited for applications requiring a short length and high torque (when compared to double universal joints of an equivalent OD). This single universal joint is made of a block, two pins, and two yokes. These components are manufactured to tight tolerances using proprietary processes that ensure smooth operation and high misalignment accommodation up to 45°, which is a significant improvement over commodity style single universal joints. It is made from high grade alloy steel for high torque capabilities. The user can add a boot to protect the joint from unwanted contaminants and increase service life. This single friction bearing universal joint is manufactured in the USA.
