  11. Rigid Coupling, 1-Pc, 10x8mm, Steel, OD 29 mm, L 45 mm
Shop All Rigid Clamp Couplings
Ruland

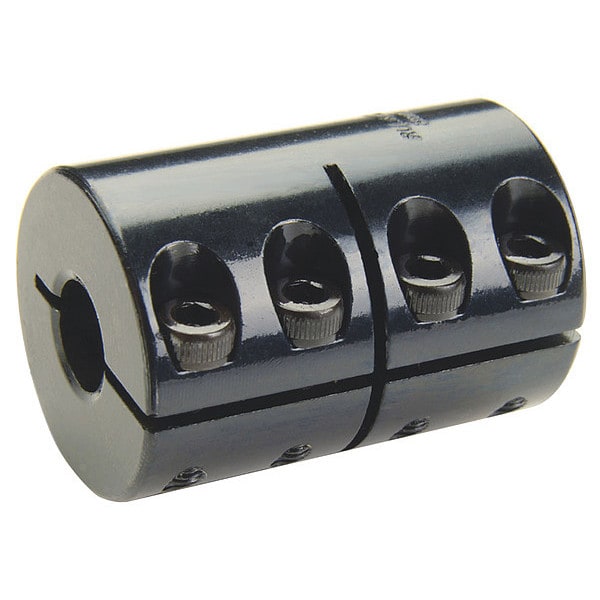

Rigid Coupling, 1-Pc, 10x8mm, Steel, OD 29 mm, L 45 mm

product price: $64.59
/ea
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • System of Measurement Metric
  • Bore Dia. 10 mm x 8 mm
  • Outside Dia. 29 mm
  • Overall Length 45 mm
  • Finish Black Oxide
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Bore Dia. 10 mm x 8 mm
Outside Dia. 29 mm
Overall Length 45 mm
Clearance Dia. 33.0 mm

Details

Item Rigid Coupling,1-Pc,10x8mm,Steel
System of Measurement Metric
Finish Black Oxide
Material 1215 Carbon Lead-Free Steel Bar
Max. RPM 4000 RPM
Max. Temp. Range (F) -40°F to 350°F (-40°C to 176°C)
Rated Torque 105 Nm
Style One-Piece
Screw Material Alloy Steel with Nypatch®
Clamp Screw M4
B1 Shaft Penetration 22.5 mm
Screw Location 10.6 mm
B2 Shaft Penetration 22.5 mm
Screw Seating Torque 4.6 Nm
Recommended Shaft Tolerance +0.000 mm / -0.013 mm
Number of Screws 4 ea
Bore Tolerance +0.05 mm / +0.012 mm

Description

Rigid Coupling,1-Pc,10x8mm,Steel
