Shop All Motion Control Couplings
Ruland

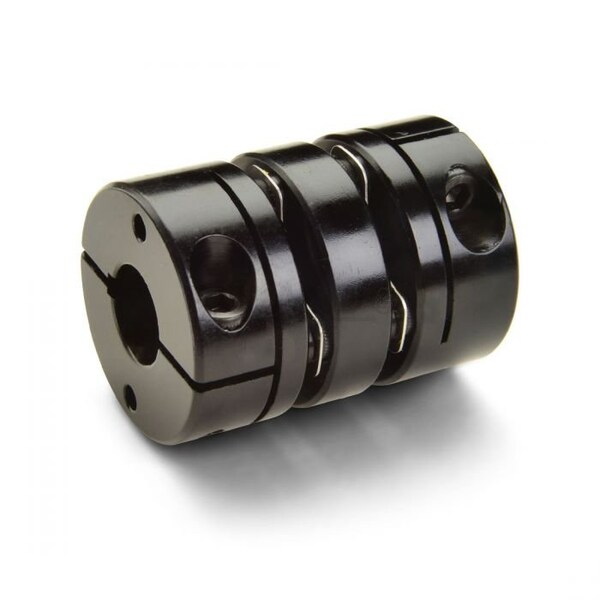

Disc Coupling
Mfr # MDCDK70-35-25-A
Zoro # G108678306
product price: $233.99
/ea
Free Shipping & Returns
$233.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Overall Length 89.7 mm
- Dynamic Torque Reversing 24 N-m
- Axial Motion 0.76 mm
- Moment of Inertia 0.00004833 kgf/m sq
- Dynamic Torque Non-Reversing 48 N-m
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Ruland
- MFR # MDCDK70-35-25-A
- Zoro # G108678306
- Country of Origin United States
- Category Motion Control Couplings
Dimensions
Overall Length | 89.7 mm |
Bore Diameter 1 | 35 mm |
Minimum Bore Diameter | 25 mm |
Bore Diameter 2 | 25 mm |
Keyway Width 1 | 10 mm |
Maximum Bore Diameter | 35 mm |
Different Bore Sizes | Yes |
Coupling Outside Diameter | 69.9 mm |
Keyway Depth 1 | 3.3 mm |
Clearance Diameter | 69.9 mm |
Length Through Bore 2 | 41.9 mm |
Screw Thread Size | M8 |
Keyway Width 2 | 8 mm |
Keyway Depth 2 | 3.3 mm |
Screw Length | 20 mm |
Length Through Bore 1 | 41.9 mm |
Hub Length | 30.5 mm |
Description
Disc Coupling, Angular Misalignment 2 Degrees , Axial Motion 0.76 mm, Bore Diameter 1 35 mm, Bore Diameter 2 25 mm, Bore Type Round with Keyway, Clearance Diameter 69.9 mm, Dynamic Torque Non-Reversing 48 N-m, Hub Length 30.5 mm, Hub Material Aluminum, Dynamic Torque Reversing 24 N-m, Coupling Outside Diameter 69.9 mm, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Length Through Bore 1 41.9 mm, Length Through Bore 2 41.9 mm, Maximum Bore Diameter 35 mm
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
