Shop All Motion Control Couplings
Ruland

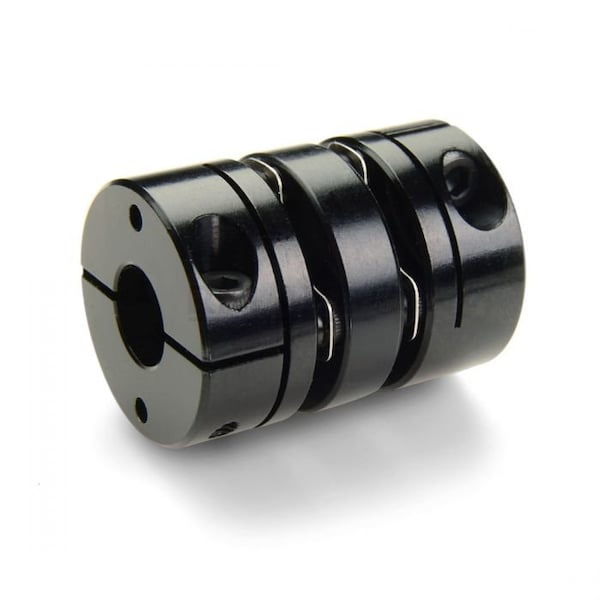

Disc Coupling
Mfr # DCD50-40MM-1"-A
Zoro # G808678002
product price: $231.99
/ea
Free Shipping & Returns
$231.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Overall Length 3 63/64 in
- Bore Diameter 2 1 in
- Hub Material Aluminum
- Maximum Bore Diameter 40 mm
- Center Spacer Material Aluminum
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Ruland
- MFR # DCD50-40MM-1"-A
- Zoro # G808678002
- Country of Origin United States
- Category Motion Control Couplings
Dimensions
| Overall Length | 3 63/64 in |
| Bore Diameter 2 | 1 in |
| Maximum Bore Diameter | 40 mm |
| Bore Diameter 1 | 40 mm |
| Minimum Bore Diameter | 1 in |
| Different Bore Sizes | Yes |
| Coupling Outside Diameter | 3 1/8 in |
Details
| Item | Disc Coupling |
| Hub Material | Aluminum |
| Center Spacer Material | Aluminum |
| Features | Balanced Design for High RPM, Constant Velocity, High Torque, High Torsional Stiffness, Long Life, Low Inertia, No Maintenance |
| Zero Backlash | Yes |
| Standards | RoHS3 and REACH Compliant |
| Disc Material Grade | 302 |
| Number of Discs | 2 with Center Spacer |
| Shaft Locking Type | Clamp On |
| Hub Material Finish | Anodized |
| Maximum Operating Temperature | 200 Degrees F |
| Disc Material | Stainless Steel |
| For Misalignment Type | Parallel |
| Minimum Operating Temperature | -10 Degrees F |
| Hub Material Grade | 2024 |
| Maximum Speed | 10,000 RPM |
| System of Measurement | Inch to Metric Bore |
Description
Disc Coupling, Bore Diameter 1 40 mm, Bore Diameter 2 1 in, Hub Material Aluminum, Coupling Outside Diameter 3 1/8 in, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Maximum Bore Diameter 40 mm, Minimum Bore Diameter 1 in, Shaft Locking Type Clamp On, System of Measurement Inch to Metric Bore, Maximum Speed 10,000 RPM, Overall Length 3 63/64 in, Different Bore Sizes Yes, Disc Material Stainless Steel
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
