Shop All Motion Control Couplings
Ruland

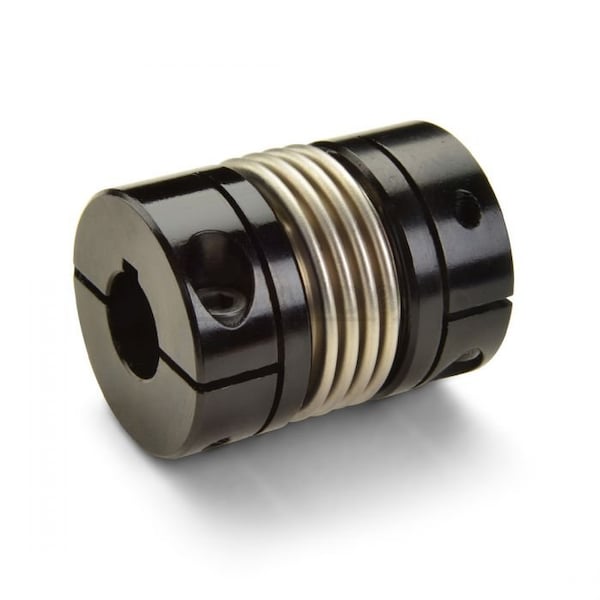

Bellows Coupling
Mfr # BCK44-1 1/2"-25MM-A
Zoro # G108675923
product price: $252.99
/ea
Free Shipping & Returns
$252.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Overall Length 3.44 in
- Bore Tolerance +0.001/-0.000 in
- Dynamic Torque Reversing 231.3 lb-in
- Screw Material Alloy Steel
- Dynamic Torque Non-Reversing 462.5 lb-in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Ruland
- MFR # BCK44-1 1/2"-25MM-A
- Zoro # G108675923
- Country of Origin United States
- Category Motion Control Couplings
Dimensions
Overall Length | 3.44 in |
Bore Diameter 1 | 1 1/2 in |
Different Bore Sizes | Yes |
Maximum Bore Diameter | 1 1/2 in |
Minimum Bore Diameter | 25 mm |
Bore Diameter 2 | 25 mm |
Coupling Outside Diameter | 2.75 in |
Keyway Width 1 | 3/8 in |
Hub Length | 1.2 in |
Length Through Bore 1 | 1.58 in |
Keyway Depth 1 | 3/16 in |
Keyway Depth 2 | 3.3 mm |
Clearance Diameter | 2.75 in |
Keyway Width 2 | 8 mm |
Length Through Bore 2 | 1.58 in |
Screw Thread Size | M8 |
Description
Bellows Coupling, Bore Diameter 1 1 1/2 in, Bore Diameter 2 25 mm, Coupling Outside Diameter 2.75 in, Maximum Speed 10,000 RPM, Maximum Torque 925 lb-in, Hub Material Aluminum, Overall Length 3.44 in, Shaft Locking Type Clamp On, System of Measurement Inch to Metric Bore, Clearance Diameter 2.75 in, Bellows Material Stainless Steel, Different Bore Sizes Yes, Length Through Bore 1 1.58 in, Length Through Bore 2 1.58 in, Parallel Misalignment 0.012 in, Bore Type Round Keyed
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
