Robohand

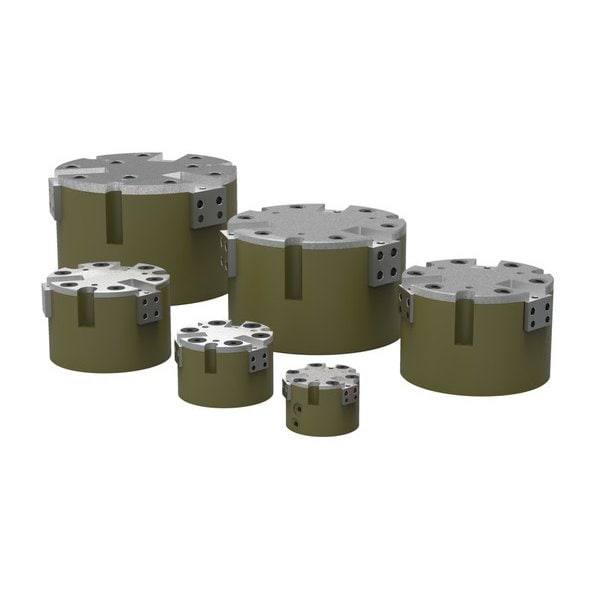

Parallel Gripper, Three Jaw
Mfr # RPC-331M
Zoro # G3144255
product price: $2,874.99
/ea
Free Shipping & Returns
$2,874.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Weight 1.36 kg
- Overall Height 75.1 mm
- Overall Width 95.3 mm
- Product Type Parallel Gripper,Three Jaw
- Displacement 52.3 cc
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Robohand
- MFR # RPC-331M
- Zoro # G3144255
- Country of Origin United States
- Category Cylinder Position Sensors
Dimensions
| Overall Height | 75.1 mm |
| Overall Width | 95.3 mm |
| Stroke Length | 15.7 mm |
| Inlet Size | M3 |
| Maximum Finger/Jaw Length | 76 mm |
Details
| Item | Parallel Gripper,Three Jaw |
| Weight | 1.36 kg |
| Product Type | Parallel Gripper,Three Jaw |
| Displacement | 52.3 cc |
| Minimum Operating Temperature | -35 Degrees C |
| Minimum Operating Pressure | 1.4 bar |
| Maximum Operating Temperature | 80 Degrees C |
| IP Rating | IP54 |
| Repeatability | +/-0.03 mm |
| Accuracy | +/-0.05 mm |
| Series | RPC |
| Maximum Actuation Time | 0.23 sec |
| Seal Material | Buna-N |
| Total Rated Grip Force @ 100 psi | 3,336 N |
| System of Measurement | Metric |
| Maximum Operating Pressure | 7 bar |
Description
Parallel Gripper,Three Jaw, Series RPC, Stroke Length 15.7 mm, Maximum Operating Pressure 7 bar, Minimum Operating Pressure 1.4 bar, Overall Width 95.3 mm, Overall Height 75.1 mm, Inlet Size M3, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 1.36 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 3,336 N, IP Rating IP54, Seal Material Buna-N, Displacement 52.3 cc, Accuracy +/-0.05 mm, Repeatability +/-0.03 mm
