Robohand

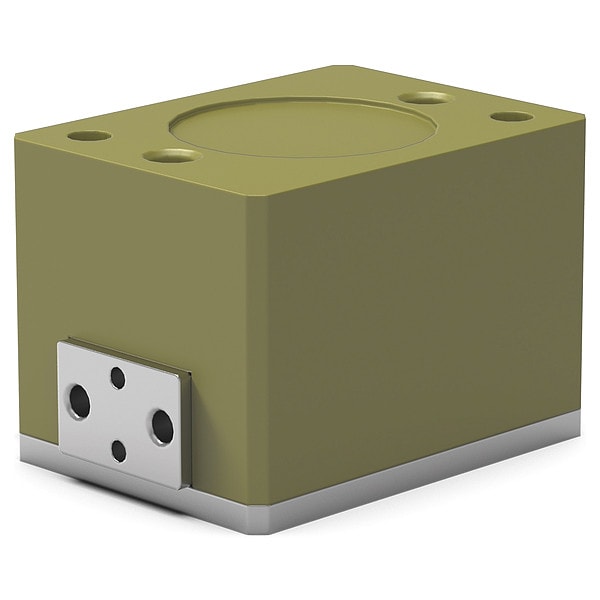

Parallel Gripper, Double Wedge

product price: $932.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Type Parallel
  • Open Width 63 mm
  • Closed Width 54 mm
  • Operating Temp. Range -30 to 180 Degrees F
  • Finger Material Carbon Steel
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Open Width 63 mm
Closed Width 54 mm
Port Size M5
Height 35.6 mm
Length 2 mm
Dimension B 54 mm
Overall Length 38.1 mm
Size 12
Overall Height 35.6 mm
Overall Width 54 mm
Bore Size 25.4 mm
Dimension a 63 mm
Inlet Size M5
Maximum Finger/Jaw Length 89 mm
Stroke Length 9.5 mm

Description

Parallel Gripper, Series RP, Open Width 63 mm, Stroke Length 9.5 mm, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 40 psi, Overall Length 38.1 mm, Overall Width 54 mm, Overall Height 35.6 mm, Body Material Aluminum, Finger Material Carbon Steel, Inlet Size M5, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 0.25 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 178 N, IP Rating IP43, Seal Material Buna-N
