Robohand

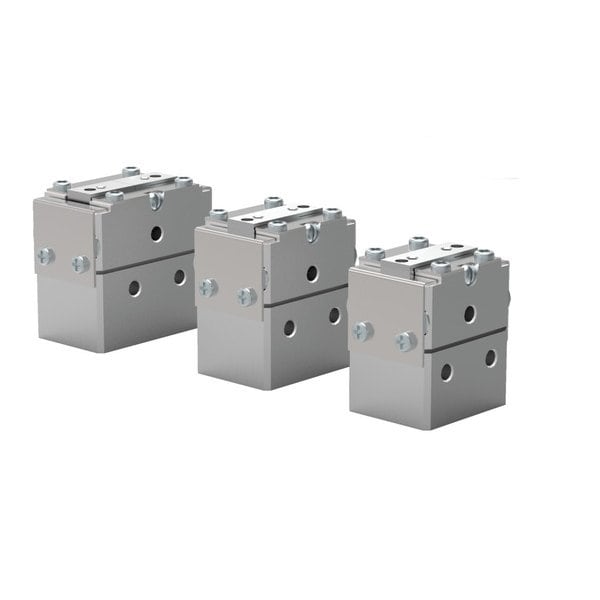

Miniature Parallel Gripper, Clean Room
Mfr # RPMC-2M
Zoro # G1162080
Free Shipping & Returns
$928.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Type Parallel
- Size 2
- Overall Height 25.5 mm
- Overall Width 24 mm
- Overall Length 16 mm
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Robohand
- MFR # RPMC-2M
- Zoro # G1162080
- Country of Origin United States
- Category Cylinder Position Sensors
Dimensions
Size | 2 |
Overall Height | 25.5 mm |
Overall Width | 24 mm |
Overall Length | 16 mm |
Height | 25 mm |
Port Size | M2 |
Closed Width | 16 mm |
Open Width | 24 mm |
Bore Size | 10 mm |
Inlet Size | M2 |
Maximum Finger/Jaw Length | 38 mm |
Stroke Length | 4.8 mm |
Description
Clean Room Miniature Parallel Gripper, Series RPMC, Open Width 24 mm, Stroke Length 4.8 mm, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 40 psi, Overall Length 16 mm, Overall Width 24 mm, Overall Height 25.5 mm, Body Material Aluminum, Finger Material Carbon Steel, Inlet Size M2, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 0.03 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 36 N, IP Rating IP64
