  11. Heavy Duty Gripper, 63 mm, M5, 5 cc
Shop All Pneumatic Grippers
Robohand

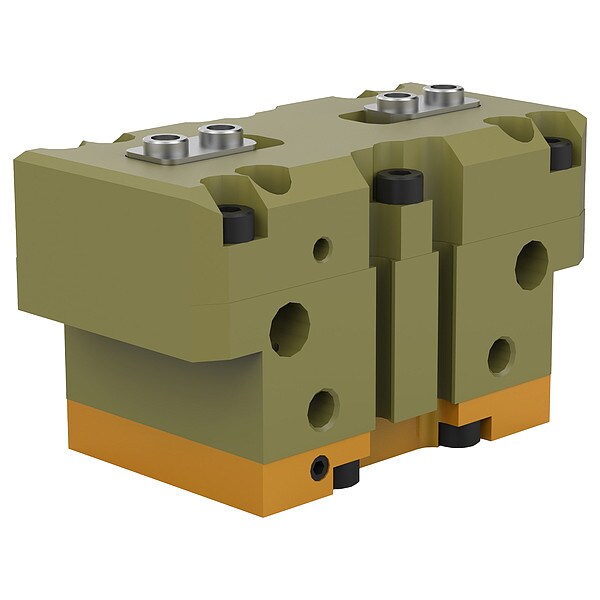

Heavy Duty Gripper, 63 mm, M5, 5 cc

product price: $1,712.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Parallel
  • Open Width 63 mm
  • Width 1.457 in
  • Maximum Pressure 100 psi
  • Length 1.299 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Open Width 63 mm
Width 1.457 in
Length 1.299 in
Port Size M3 x 3
Dimension B 12 mm
Height 63 mm
Bore Size 27.2 mm
Size 1M
Dimension a 9 mm
Overall Length 33 mm
Overall Width 63 mm
Stroke Length 4 mm
Inlet Size M5
Maximum Finger/Jaw Length 89 mm
Overall Height 63 mm

Description

Heavy Duty Gripper, Series RDH, Open Width 63 mm, Stroke Length 4 mm, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 29 psi, Overall Length 33 mm, Overall Width 63 mm, Overall Height 63 mm, Body Material Aluminum, Finger Material Carbon Steel, Inlet Size M5, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 0.25 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 555 N, IP Rating IP55, Seal Material Buna-N
