Robohand
Heavy Duty Gripper, 355 mm, 1/4 in G
Mfr # RDH-8M
Zoro # G408610204
product price: $10,877.99
/ea
Free Shipping & Returns
$10,877.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Type Parallel
- Open Width 355 mm
- Width 7.717 in
- Opening/Closing Stroke 35 mm
- Finger Material Carbon Steel
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Robohand
- MFR # RDH-8M
- Zoro # G408610204
- Country of Origin France
- Category Pneumatic Grippers
Dimensions
Open Width | 355 mm |
Width | 7.717 in |
Dimension B | 69 mm |
Height | 355 mm |
Port Size | M8 x 10 |
Length | 7.087 in |
Size | 8M |
Bore Size | 171.5 mm |
Dimension a | 57 mm |
Stroke Length | 35 mm |
Overall Width | 355 mm |
Inlet Size | 1/4 in |
Overall Height | 355 mm |
Maximum Finger/Jaw Length | 406 mm |
Overall Length | 180 mm |
Description

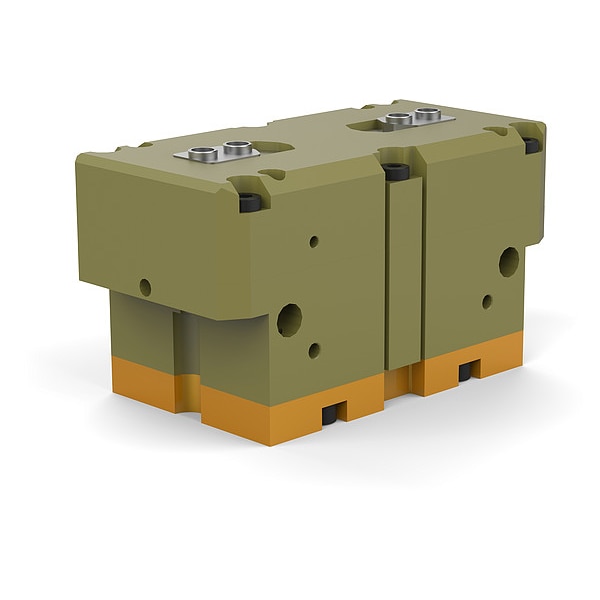

Heavy Duty Gripper, Series RDH, Open Width 355 mm, Stroke Length 35 mm, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 29 psi, Overall Length 180 mm, Overall Width 355 mm, Overall Height 355 mm, Body Material Aluminum, Finger Material Carbon Steel, Inlet Size 1/4 in, Air Inlet Type G, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 43.9 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 21,958 N, IP Rating IP55
