  11. Heavy Duty Gripper, 162 mm, 1/8 in G
Shop All Pneumatic Grippers
Robohand

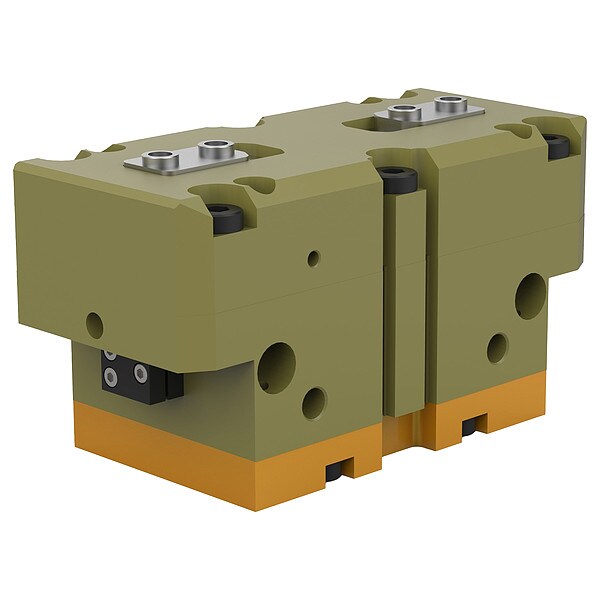

Heavy Duty Gripper, 162 mm, 1/8 in G

product price: $2,593.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Type Parallel
  • Open Width 162 mm
  • Maximum Pressure 100 psi
  • Height 162 mm
  • Port Size M5 x 6
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Open Width 162 mm
Height 162 mm
Port Size M5 x 6
Dimension B 30.5 mm
Length 2.992 in
Width 3.465 in
Dimension a 24.5 mm
Bore Size 69.1 mm
Size 5M
Inlet Size 1/8 in
Overall Height 162 mm
Stroke Length 13 mm
Overall Width 162 mm
Overall Length 76 mm
Maximum Finger/Jaw Length 203.2 mm

Description

Heavy Duty Gripper, Series RDH, Open Width 162 mm, Stroke Length 13 mm, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 29 psi, Overall Length 76 mm, Overall Width 162 mm, Overall Height 162 mm, Body Material Aluminum, Finger Material Carbon Steel, Inlet Size 1/8 in, Air Inlet Type G, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -35 Degrees C, Weight 3.9 kg, System of Measurement Metric, Total Rated Grip Force @ 100 psi 3,593 N, IP Rating IP55
