Robohand

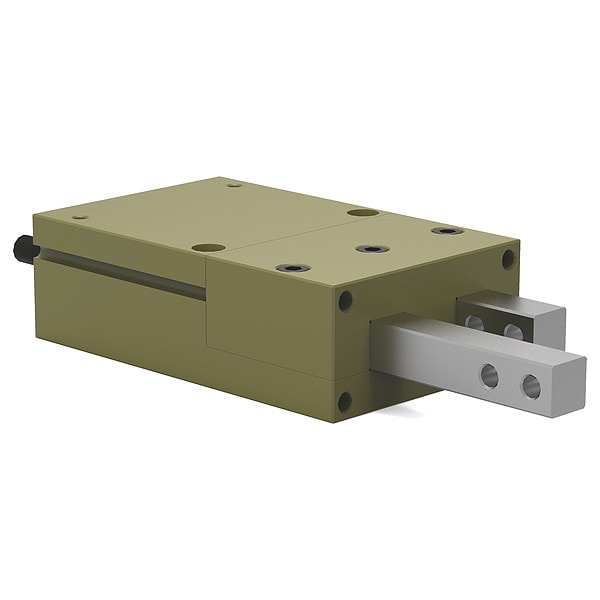

Feed Escapement

product price: $875.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Weight 1.84 lb
  • Size 13M
  • Maximum Stroke 1.25 in
  • Minimum Operating Temperature -30 Degrees F
  • Parts Escaped per Minute 85
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Size 13M
Air Port Thread Size M5
Cylinder Bore Diameter 1.063 in
Rod Diameter 3/8 in
Stroke Length 1 1/4 in
Bore Diameter 1 1/8 in

Description

Feed Escapement, Thrust Force @ 100 psi 400 N, Stroke Length 1 1/4 in, Stroke Adjustability Adjustable, Maximum Operating Pressure 100 psi, Minimum Operating Pressure 40 psi, Bore Diameter 1 1/8 in, Rod Diameter 3/8 in, Maximum Actuation Time 0.7 sec, Displacement 18.2 cc, Escapement Rate per Minute 85, Finger Mounting Side, Seal Material Buna-N, Weight 1.84 lb, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -30 Degrees F
