Robohand

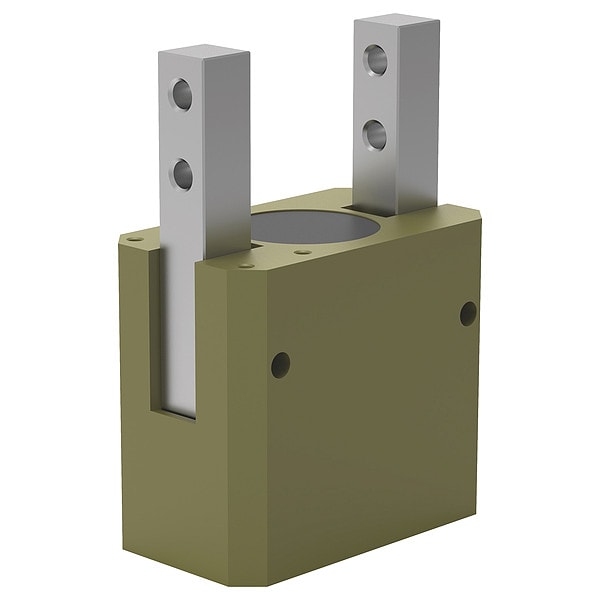

Angular Gripper, Failsafe Locking
Mfr # RA-15
Zoro # G1157488
product price: $969.99
/ea
Free Shipping & Returns
$969.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Type Angular
- Product Type 2-Jaw Angular Gripper
- Port Size M5
- Gripping Type Angular
- Operating Temp. Range -30 to 180 Degrees F
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Robohand
- MFR # RA-15
- Zoro # G1157488
- Country of Origin United States
- Category Cylinder Position Sensors
Dimensions
Port Size | M5 |
Bore Size | 0.75 in |
Length | 1.75 in |
Size | 15 |
Height | 2.468 in |
Overall Height | 2 1/2 in |
Open Width | 1 3/4 in |
Overall Width | 1 3/4 in |
Overall Length | 1 3/4 in |
Inlet Size | M5 |
Maximum Finger Length | 2 in |
Description
Locking Angular Gripper, Series RA, Open Width 1 3/4 in, Total Stroke 12 Degrees , Maximum Operating Pressure 100 psi, Minimum Operating Pressure 40 psi, Overall Length 1 3/4 in, Overall Width 1 3/4 in, Overall Height 2 1/2 in, Body Material Aluminum, Finger Material Carbon Steel, Maximum Operating Temperature 180 Degrees F, Stroke Adjustment Increment 6 Degrees , IP Rating IP43, Gripper Rotation 6 Degrees , Minimum Operating Temperature -30 Degrees F, Inlet Size M5, Weight 0.31 lb
