Shop All Beam & Plate Clamps
Renfroe

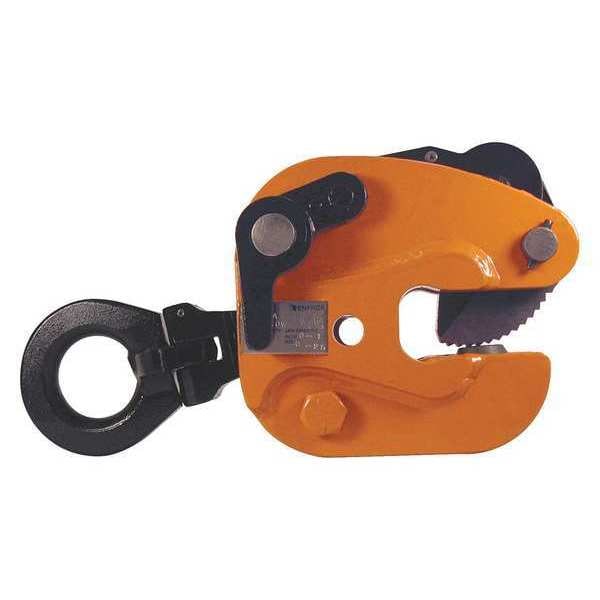

Plate Clamp, Vertical Lift, 2 ton
Mfr # LPA-02.00-A
Zoro # G3727967
Free Shipping & Returns
$1,384.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Operation Vertical Lift with 180 Degrees Flip
- Material Steel
- Safe Working Load 4,000 lb
- Jaw Capacity 0 in to 1 in
- Overall Width 3 5/8 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Renfroe
- MFR # LPA-02.00-A
- Zoro # G3727967
- Country of Origin United States
- Category Beam & Plate Clamps
Dimensions
Overall Width | 3 5/8 in |
Overall Height | 12 1/2 in |
Attachment Diameter | 1 7/8 in |
Overall Depth | 7 1/8 in |
Details
Item | Plate Clamp |
Operation | Vertical Lift with 180 Degrees Flip |
Material | Steel |
Safe Working Load | 4,000 lb |
Jaw Capacity | 0 in to 1 in |
Lifting Point | Pivoting Shackle Eye |
Jaw Material | Steel |
Locking Type | Load Activated |
Standards | ASME BTH-1 |
Attachment Type | Pivoting Shackle |
Minimum Jaw Opening | 0 in |
Grip Type | Teeth |
Maximum Jaw Opening | 1 in |
Clamp Type | Plate Clamp |
Close Type | Manual with Lock |
Open Type | Manual |
Minimum Material Thickness | 0 in |
Maximum Material Thickness | 1 in |
Working Load Limit | 4,000 lb |
Description
Plate Clamp, Working Load Limit 4,000 lb, Attachment Type Pivoting Shackle, Open Type Manual, Close Type Manual with Lock, Minimum Material Thickness 0 in, Maximum Material Thickness 1 in, Minimum Jaw Opening 0 in, Maximum Jaw Opening 1 in, Material Steel, Clamp Type Plate Clamp, Operation Vertical Lift with 180 Degrees Flip, Attachment Diameter 1 7/8 in, Grip Type Teeth, Overall Height 12 1/2 in, Overall Width 3 5/8 in, Overall Depth 7 1/8 in, Standards ASME BTH-1
