This Product is Discontinued

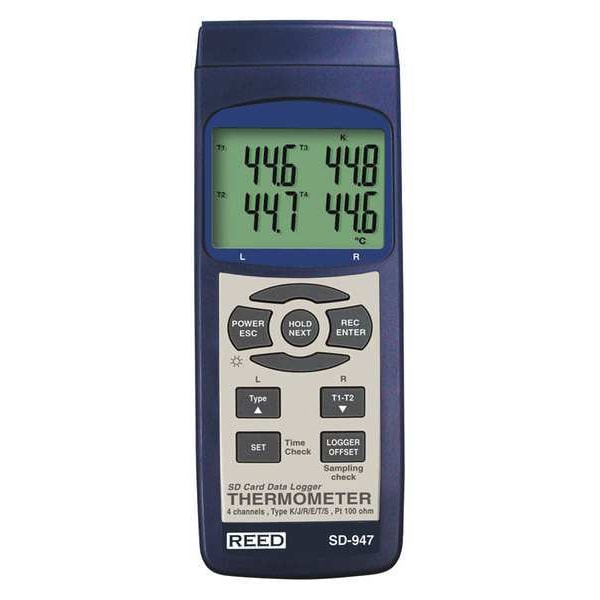

SD Series Thermocouple Thermometer, Data logger, 4 Channel, Type K, J, R, S, E, T and RTD (Discontinued)

Mfr # SD-947
Zoro # G9479565

Free Shipping & Returns

This Product is Discontinued

Shop for all Thermocouple Thermometers

Key Features

Thermometer Thermocouple Type Type E, Type J, Type K, Type R, Type S, Type T
Number of Inputs 4
Temp. Range (F) -327.9 Degrees to 1562 Degrees
Temp. Range (C) -199.99 Degrees to 850 Degrees
Accuracy +/-0.4% +1.8 Degrees F/1 Degrees C (RTD), +/-0.4% +1 Degrees F/0.5 Degrees C (Type E, J, K, T), +/-0.5% +2 Degrees F/1 Degrees C (Type R, S)

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Reed Instruments
MFR # SD-947
Zoro # G9479565
UPC #
800837001955
Country of Origin Taiwan, Province of China
Category Thermocouple Thermometers

Dimensions

Manufacturers Warranty Length	1 yr
Manufacturer Warranty Length	1 yr

Details

Thermometer Item	Thermocouple Thermometer
Thermometer Thermocouple Type	Type E, Type J, Type K, Type R, Type S, Type T
Number of Inputs	4
Temp. Range (F)	-327.9 Degrees to 1562 Degrees
Temp. Range (C)	-199.99 Degrees to 850 Degrees
Accuracy	+/-0.4% +1.8 Degrees F/1 Degrees C (RTD), +/-0.4% +1 Degrees F/0.5 Degrees C (Type E, J, K, T), +/-0.5% +2 Degrees F/1 Degrees C (Type R, S)
Display	LCD
Battery Type	(6) AA
Features	Measures and Displays (4) Separate Temperatures Simultaneously, Measures In Both Celsius and Fahrenheit, Incorporates Data Hold and Max/Min Recording
Includes	Batteries
Calibration Certificate Included	No
Calibration Certificate	No
Interface	RS232, USB
Auto Power Off	Yes
Data Hold	Yes
Resolution	0.1 Degrees F/0.1 Degrees C, 1 Degrees F/1 Degrees C
Sampling Rate	1 to 3600 sec
Memory	Min/Max
Item	Thermocouple Thermometer
Data Logging	Yes
Standards	ISO 9001:2008
Functions	Degrees F/ Degrees C Switchable, Low Battery Indication, Min/Max Memory
Display Type	LCD
RTD Temperature Range F	-327.9 Degrees to 1,562 Degrees F
RTD Temperature Range C	-199.99 Degrees to 850 Degrees C
Data Output Type	USB
Power Source Details	(6) AA Batteries
Thermocouple Temperature Range C	-100 Degrees to 900 Degrees C (Type E), -100 Degrees to 1,150 Degrees C (Type J), -100 Degrees to 1,300 Degrees C (Type K), 0 Degrees to 1,700 Degrees C (Type R), 0 Degrees to 1,500 Degrees C (Type S), -100 Degrees to 400 Degrees C (Type T)
Thermocouple Temperature Range F	-148 Degrees to 999.9 Degrees F (Type E), -148 Degrees to 2,102 Degrees F (Type J), -148 Degrees to 2,372 Degrees F (Type K), 32 Degrees to 3,092 Degrees F (Type R), 32 Degrees to 2,732 Degrees F (Type S), -148 Degrees to 752 Degrees F (Type T)
Response Time	1 sec
Humidity Range	10% to 90%
Digital Display	Backlit LCD
Temperature Range	-148 Degrees to 2,102 Degrees F/-100 Degrees to 1,150 Degrees C (Type J), -148 Degrees to 2,372 Degrees F/-100 Degrees to 1,300 Degrees C (Type K), -148 Degrees to 752 Degrees F/-100 Degrees to 400 Degrees C (Type T), -148 Degrees to 999.9 Degrees F/-100 Degrees to 900 Degrees C (Type E), -327.9 Degrees to 1,562 Degrees F/-199.99 Degrees to 850 Degrees C (RTD), 32 Degrees to 2,732 Degrees F/0 Degrees to 1,500 Degrees C (Type S), 32 Degrees to 3,092 Degrees F/0 Degrees to 1,700 Degrees C (Type R)
Number of Channels	6
For Thermocouple Type	Type E, Type J, Type K, Type R, Type S, Type T
Backlit	Yes
Temperature Meter Type	Multichannel RTD/Thermocouple Temperature Meter with Data Output and Min/Max
Includes Batteries	Yes
Sensor Type	RTD, Thermocouple

Description

Thermocouple Thermometer, RTD, Thermocouple, Number of Channels 6, Accuracy +/-0.4 Percent +1.8 Degrees F/1 Degrees C (RTD), +/-0.4 Percent +1 Degrees F/0.5 Degrees C (Type E, J, K, T), +/-0.5 Percent +2 Degrees F/1 Degrees C (Type R, S)
