Shop All Strain Relief Connector
Raychem

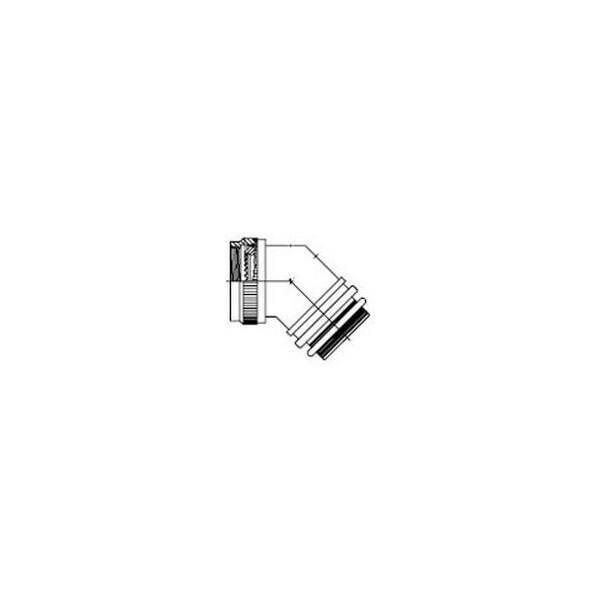

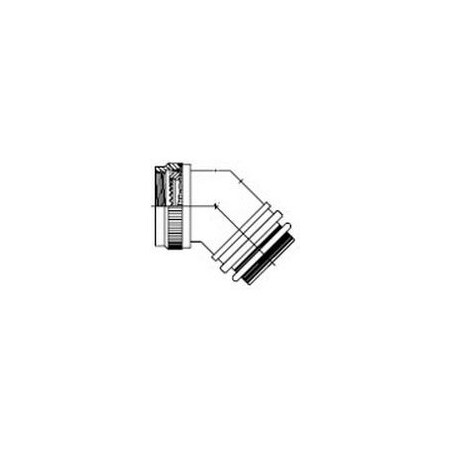

TXR54AB45-0804BI

product price: $317.99
/ea
Sold in multiples of 25 for $7,949.75
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Color Olive Drab
  • Cable Entry Diameter .2 “ 6.4 mm[.01 “ .25 in]
  • Series Raychem TXR
  • Termination Device Type Side-Entry Tinel-Lock Ring,Tinel-Lock Adapter,Tinel-Lock Ring
  • Cable Diameter Range 3.2 “ 5.1 mm[.125 “ .2 in]
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Entry Diameter .2 “ 6.4 mm[.01 “ .25 in]
Cable Diameter Range 3.2 “ 5.1 mm[.125 “ .2 in]
Adapter Entry Size 4
Connector Shell Size 08,8S

Details

Color Olive Drab
Series Raychem TXR
Termination Device Type Side-Entry Tinel-Lock Ring,Tinel-Lock Adapter,Tinel-Lock Ring
TE Adapter Code 54
Connector Detail Specification Number AS34001, AS34011, AS34041, AS34061, AS34081, AS34091, AS34121, AS34241, AS34461, AS34501, AS34511, AS34541, AS34561, AS34641, AS34671, AS34681, M83723/01, M83723/02, M83723/03, M83723/04, M83723/05, M83723/06, M83723/07, M83723/08, M83723/13, M83723/14, M83723/36, M83723/37, M83723/38, M83723/39, M83723/40, M83723/41, M83723/42, M83723/43, M83723/48, M83723/49, M83723/65, M83723/66, M83723/67, M83723/68, M83723/69, M83723/71, M83723/72, M83723/73, M83723/74, M83723/75, M83723/76, M83723/77, M83723/78, M83723/82, M83723/83, M83723/84, M83723/85, M83723/86, M83723/87, M83723/91, M83723/92, M83723/95, M83723/96, M83723/97, M83723/98, MS3459, MS3470, MS3471, MS3472, MS3474, MS3475, MS3476, NAS 1599, NAS 1641, NAS 1642, NAS 1643, NAS 1650, NAS 1651, NAS 1652, NAS 1653, NAS 1692, NAS 1693, NAS 1694, NAS 1699, NAS 1700, NAS 1701, NAS 1702
Adapter Plating Material Cadmium (AMS-QQ-P-416, Type II, Class 3)
Operating Temperature Range -65 “ 175 °C[-85 “ 347 °F]
Pluggable I/O Accessory Type Tinel-Lock Adapter
Backshell Material Aluminum
Termination Device Included TR04BI
Overbraid Termination Tinel-Lock Ring
Adapter Angle 45
Salt Spray Resistance 500 Hr
Connector General Specification Number AS50151 Class D,L,U,W Crimp Contact,AS50151 Class D,L,U,W Crimp Contact Less ENDBELL,AS50151 Class L,W Crimp Contact,AS50151 Crimp Contact,AS81703 Series 3,AS81703 Series 3/Class E,L,MIL-DTL-26482 Series 2/Class A,L,MIL-DTL-83723 Series I/Class A,G,R,MIL-DTL-83723 Series I/Class G,R,MIL-DTL-83723 Series III/Class A,G,K,R,MIL-DTL-83723 Series III/Class A,G,K,R,S,MIL-DTL-83723 Series III/Class A,G,R,MIL-DTL-83723 Series III/Class G,R,MIL-DTL-83723 Series III/Class G,R,W,MIL-DTL-83723 Series III/Class S,MIL-DTL-83723 Series IIII/Class H
