Shop All Strain Relief Connector
Raychem

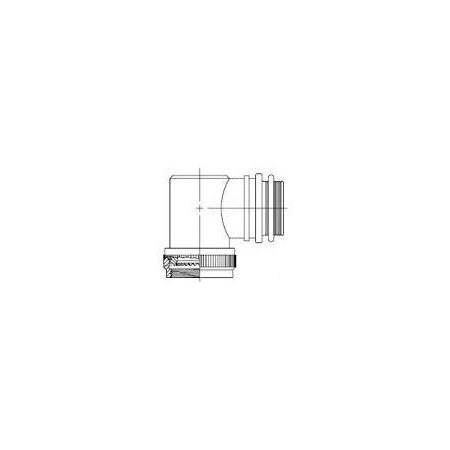

TXR41AB90-1408BI
Mfr # TXR41AB90-1408BI
Zoro # G400961991
product price: $167.99
/ea
Free Shipping & Returns
$167.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Color Olive Drab
- Adapter Entry Size 8
- Overbraid Termination Tinel-Lock Ring
- Connector Shell Size 14,15
- Pluggable I/O Accessory Type Tinel-Lock Adapter
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Raychem
- MFR # TXR41AB90-1408BI
- Zoro # G400961991
- Country of Origin United Kingdom
- Category Strain Relief Connector
Dimensions
| Adapter Entry Size | 8 |
| Connector Shell Size | 14,15 |
| Cable Diameter Range | 6.4 “ 10.2 mm[.25 “ .4 in] |
| Cable Entry Diameter | .2 “ 12.7 mm[.01 “ .5 in] |
Details
| Color | Olive Drab |
| Overbraid Termination | Tinel-Lock Ring |
| Pluggable I/O Accessory Type | Tinel-Lock Adapter |
| Salt Spray Resistance | 500 Hr |
| Backshell Material | Aluminum |
| Termination Device Included | TR08BI |
| Adapter Angle | 90 |
| Connector General Specification Number | MIL-DTL-38999 Series I,MIL-DTL-38999 Series I/Class E,P,T,MIL-DTL-38999 Series I/Class E,T,MIL-DTL-38999 Series II/Class E,P,T,MIL-DTL-38999 Series II/Class E,T,MIL-DTL-38999 Series II/Class T |
| Connector Detail Specification Number | MS24266, MS27467, MS27468, MS27472, MS27473, MS27474, MS27479, MS27480, MS27481, MS27484, MS27497, MS27652, MS27653, MS27656, MS27661, MS27665 |
| TE Adapter Code | 41 |
| Series | Raychem TXR |
| Operating Temperature Range | -65 “ 175 °C[-85 “ 347 °F] |
| Termination Device Type | Side-Entry Tinel-Lock Ring,Tinel-Lock Adapter,Tinel-Lock Ring |
| Adapter Plating Material | Cadmium (AMS-QQ-P-416, Type II, Class 3) |
