Shop All Strain Relief Connector
Raychem

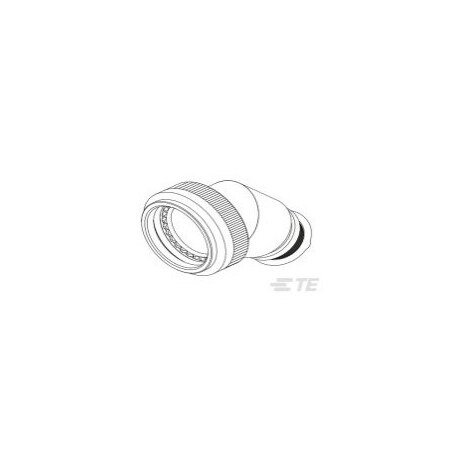

TXR40SJ45-1408BI
Mfr # TXR40SJ45-1408BI
Zoro # G600962859
product price: $237.99
/ea
Free Shipping & Returns
$237.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Backshell Material Corrosion Resisting Steel
- Adapter Entry Size 8
- Operating Temperature Range -65 “ 260 °C[-85 “ 500 °F]
- TE Adapter Code 40
- Cable Entry Diameter .2 “ 12.7 mm[.01 “ .5 in]
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Raychem
- MFR # TXR40SJ45-1408BI
- Zoro # G600962859
- Country of Origin Mexico
- Category Strain Relief Connector
Dimensions
Adapter Entry Size | 8 |
Cable Entry Diameter | .2 “ 12.7 mm[.01 “ .5 in] |
Cable Diameter Range | 6.4 “ 10.2 mm[.25 “ .4 in] |
Connector Shell Size | 15,D |
Details
Backshell Material | Corrosion Resisting Steel |
Operating Temperature Range | -65 “ 260 °C[-85 “ 500 °F] |
TE Adapter Code | 40 |
Termination Device Included | TR08BI |
Overbraid Termination | Tinel-Lock Ring |
Adapter Angle | 45 |
Connector Detail Specification Number | D38999/20, D38999/24, D38999/26, D38999/40, D38999/42, D38999/46, D38999/47 |
Salt Spray Resistance | 1000 Hr |
Connector General Specification Number | MIL-DTL-38999 Series III/Class C,F,K,W,MIL-DTL-38999 Series IV/Class C,F,W,MIL-DTL-38999 Series IV/Class C,W,MIL-DTL-38999 Series IV/Class F,W |
Termination Device Type | Side-Entry Tinel-Lock Ring,Tinel-Lock Adapter,Tinel-Lock Ring |
Series | Raychem TXR |
Adapter Plating Material | Passivated (SAE AMS-QQ-P-35 or MIL-S-5002) |
Pluggable I/O Accessory Type | Tinel-Lock Adapter |
