Shop All Strain Relief Connector
Raychem

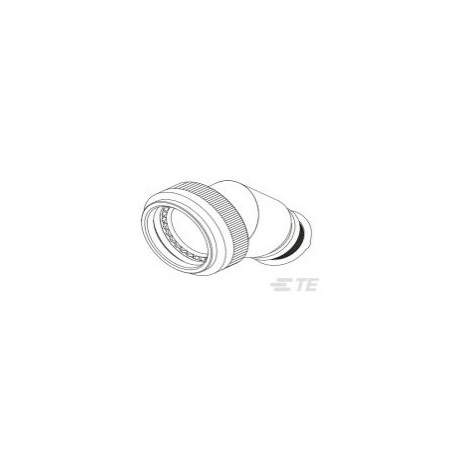

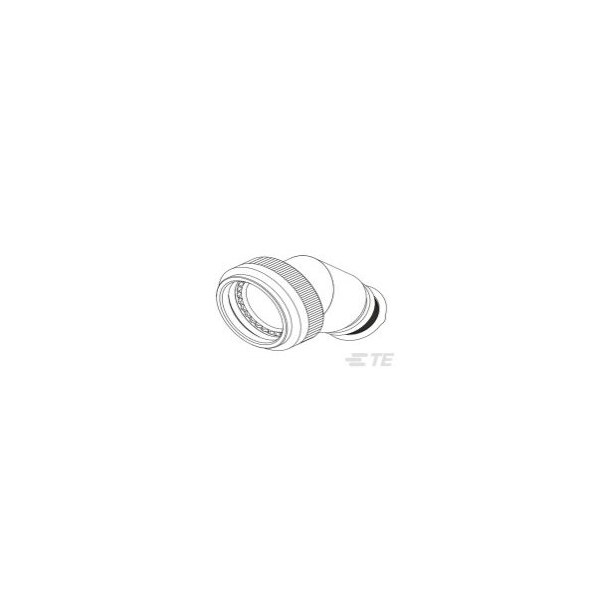

TXR40AC45-2420AIL
Mfr # TXR40AC45-2420AIL
Zoro # G000961018
product price: $252.99
/ea
Free Shipping & Returns
$252.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Color Bright
- Connector Detail Specification Number D38999/20, D38999/24, D38999/26, D38999/40, D38999/42, D38999/46, D38999/47
- Connector Shell Size 25,J
- Pluggable I/O Accessory Type Tinel-Lock Adapter
- Termination Device Type Side-Entry Tinel-Lock Ring,Tinel-Lock Adapter,Tinel-Lock Ring
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Raychem
- MFR # TXR40AC45-2420AIL
- Zoro # G000961018
- Country of Origin United Kingdom
- Category Strain Relief Connector
Dimensions
Connector Shell Size | 25,J |
Adapter Entry Size | 20 |
Cable Diameter Range | 12.7 “ 20.7 mm[.5 “ .12 in] |
Cable Entry Diameter | .2 “ 31.8 mm[.01 “ 1.25 in] |
Details
Color | Bright |
Connector Detail Specification Number | D38999/20, D38999/24, D38999/26, D38999/40, D38999/42, D38999/46, D38999/47 |
Pluggable I/O Accessory Type | Tinel-Lock Adapter |
Termination Device Type | Side-Entry Tinel-Lock Ring,Tinel-Lock Adapter,Tinel-Lock Ring |
TE Adapter Code | 40 |
Backshell Material | Aluminum |
Termination Device Included | TR20AI |
Series | Raychem TXR |
Overbraid Termination | Tinel-Lock Ring |
Operating Temperature Range | -65 “ 200 °C[-85 “ 392 °F] |
Adapter Angle | 45 |
Connector General Specification Number | MIL-DTL-38999 Series III/Class C,F,K,W,MIL-DTL-38999 Series IV/Class C,F,W,MIL-DTL-38999 Series IV/Class C,W,MIL-DTL-38999 Series IV/Class F,W |
Adapter Plating Material | Electroless Nickel (AMS-C-26074) |
Salt Spray Resistance | 48 Hr |
