Shop All Strain Relief Connector
Raychem

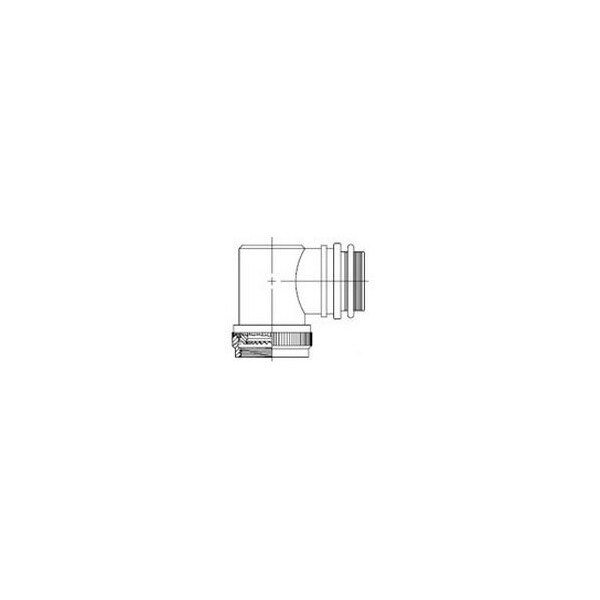

TXR40AB90-2016AI

product price: $355.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
after you
Free 30-Day Returns

Key Features

  • Color Olive Drab
  • Operating Temperature Range -65 “ 175 °C[-85 “ 347 °F]
  • Termination Device Type Side-Entry Tinel-Lock Ring,Tinel-Lock Adapter,Tinel-Lock Ring
  • Connector General Specification Number MIL-DTL-38999 Series III/Class C,F,K,W,MIL-DTL-38999 Series IV/Class C,F,W,MIL-DTL-38999 Series IV/Class C,W,MIL-DTL-38999 Series IV/Class F,W
  • Cable Diameter Range 12.7 “ 20.3 mm[.5 “ .8 in]
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Cable Diameter Range 12.7 “ 20.3 mm[.5 “ .8 in]
Cable Entry Diameter .2 “ 25.4 mm[.01 “ 1 in]
Connector Shell Size 21,G
Adapter Entry Size 16

Details

Color Olive Drab
Operating Temperature Range -65 “ 175 °C[-85 “ 347 °F]
Termination Device Type Side-Entry Tinel-Lock Ring,Tinel-Lock Adapter,Tinel-Lock Ring
Connector General Specification Number MIL-DTL-38999 Series III/Class C,F,K,W,MIL-DTL-38999 Series IV/Class C,F,W,MIL-DTL-38999 Series IV/Class C,W,MIL-DTL-38999 Series IV/Class F,W
Adapter Plating Material Cadmium (AMS-QQ-P-416, Type II, Class 3)
Pluggable I/O Accessory Type Tinel-Lock Adapter
TE Adapter Code 40
Salt Spray Resistance 500 Hr
Adapter Angle 90
Connector Detail Specification Number D38999/20, D38999/24, D38999/26, D38999/40, D38999/42, D38999/46, D38999/47
Backshell Material Aluminum
Termination Device Included TR16AI
Overbraid Termination Tinel-Lock Ring
Series Raychem TXR

Description
