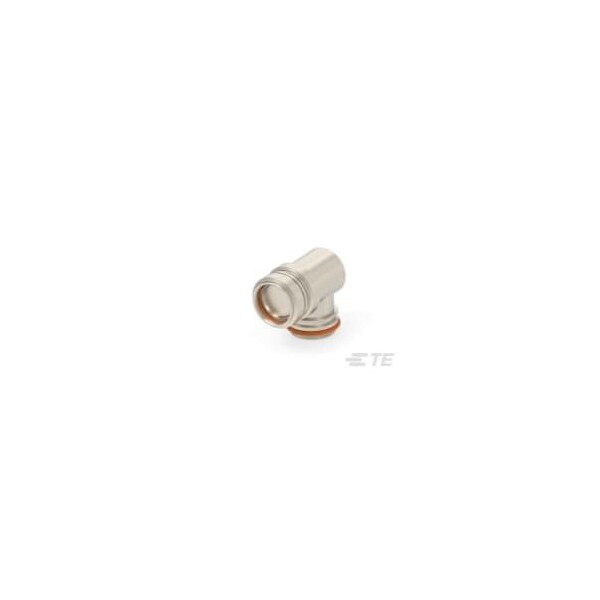

Shop All Strain Relief Connector
Raychem

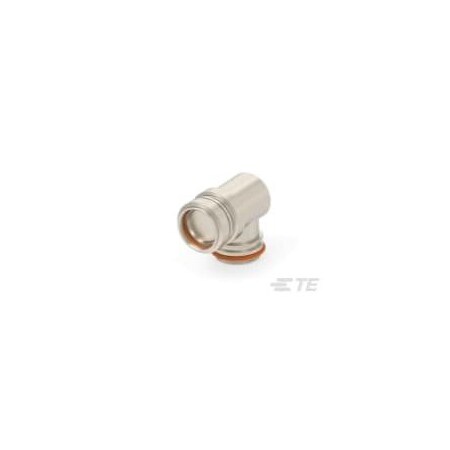

TXR40AB90-1818BI
Mfr # D63021-000
Zoro # G500961198
Free Shipping & Returns
$437.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Material Aluminum
- Color Olive Drab
- Connector Detail Specification Number D38999/24, D38999/47, D38999/26, D38999/46, D38999/40, D38999/20, D38999/42
- Operating Temperature Range -65 “ 175 °C
- Connector Shell Size 19, F
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Raychem
- MFR # D63021-000
- Zoro # G500961198
- Country of Origin United States
- Category Strain Relief Connector
Dimensions
Connector Shell Size | 19, F |
Cable Diameter Range | .5 “ .1 in |
Cable Entry Diameter | .01 “ 1.13 in |
Adapter Entry Size | 18 |
Details
Material | Aluminum |
Color | Olive Drab |
Connector Detail Specification Number | D38999/24, D38999/47, D38999/26, D38999/46, D38999/40, D38999/20, D38999/42 |
Operating Temperature Range | -65 “ 175 °C |
Adapter Angle | 90 |
Termination Device Type | Tinel-Lock Ring, Side-Entry Tinel-Lock Ring |
Overbraid Termination | Tinel-Lock Ring |
Pluggable I/O Accessory Type | Tinel-Lock Adapter |
TE Adapter Code | 40 |
Termination Device Included | TR18BI |
Style | Tinel-Lock Adapter |
Adapter Plating Material | Cadmium (AMS-QQ-P-416 Type II, Class 3) |
Salt Spray Resistance | 500 Hr |
Connector General Specification Number | MIL-DTL-38999 Series IV/Class C,F,W, MIL-DTL-38999 Series IV/Class C,W, MIL-DTL-38999 Series III/Class C,F,K,W, MIL-DTL-38999 Series IV/Class F,W |
