Shop All Splicing Connectors

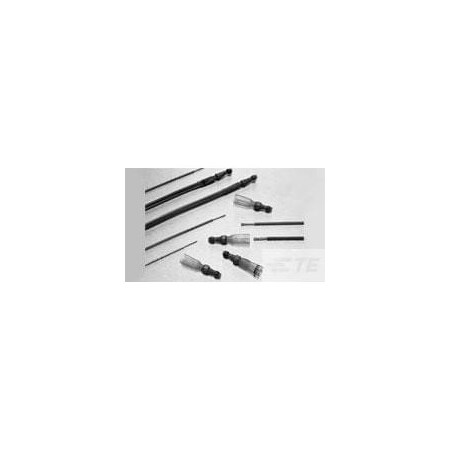

Raychem
SGRS-3-58
Mfr # CA6206-000
Zoro # G700960212
product price: $6.99
/ea
Sold in multiples of 1500 for $10,485.00
$10,485.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Color Blue
- Overall Length 45.5 mm[1.79 in]
- Wire Size 7000 to 16000 CMA
- Termination Method Solder
- Wire Insulation Support With
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Raychem
- MFR # CA6206-000
- Zoro # G700960212
- Country of Origin Mexico
- Category Splicing Connectors
Dimensions
Overall Length | 45.5 mm[1.79 in] |
Wire Size | 7000 to 16000 CMA |
Wire Insulation Diameter (Max) | 7 mm[.275 in] |
Details
Color | Blue |
Termination Method | Solder |
Wire Insulation Support | With |
Discrete Wire Type | Stranded |
Number of Conductors | 4 |
Sealable | Yes |
Insulated | Yes |
Insulation Material | Heat Shrink Radiation-Crosslinked Modified Polyvinylidene Fluoride |
Terminal & Splice Type | Splice |
Wire/Cable Type | Stranded Wire |
Product Type | SolderGrip |
Operating Temperature Range | -40 to 125°C[-40 to 257°F] |
Splice Type | Stub Splice |
Insulation Sleeve Material | Polyvinylidene Fluoride |
Cable Temperature Rating | 125°C |
Insulation Support Sleeve Material | Polyvinylidene Fluoride |
