Shop All Splicing Connectors
Raychem

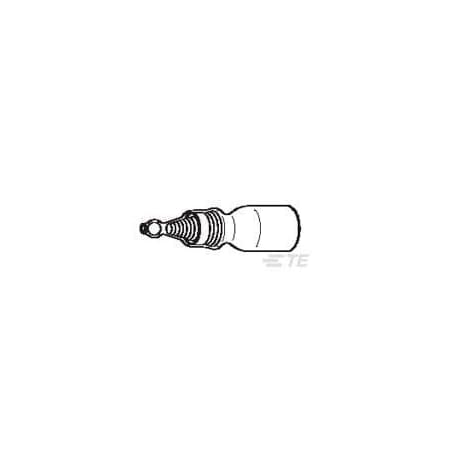

SGRP-2
Mfr # SGRP-2
Zoro # G200962969
product price: $3.29
/ea
Sold in multiples of 35 for $115.15
$115.15
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Color Red
- Overall Length 37.7 mm[1.485 in]
- Wire Size 4000 to 8000 CMA
- Insulation Material Heat Shrink Radiation-Crosslinked Modified Polyvinylidene Fluoride
- Splice Material Copper
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Raychem
- MFR # SGRP-2
- Zoro # G200962969
- Country of Origin Mexico
- Category Splicing Connectors
Dimensions
Overall Length | 37.7 mm[1.485 in] |
Wire Size | 4000 to 8000 CMA |
Wire Insulation Diameter (Max) | 6 mm[.235 in] |
Details
Color | Red |
Insulation Material | Heat Shrink Radiation-Crosslinked Modified Polyvinylidene Fluoride |
Splice Material | Copper |
Heavy Duty | No |
Wire/Cable Type | Stranded Wire |
Termination Method | Solder |
Barrel Type | Closed Barrel |
Discrete Wire Type | Stranded |
Serrated | No |
Insulated | Yes |
Terminal & Splice Type | Splice |
Splice Type | Stub Splice |
Wire Insulation Support | With |
Insulation Sleeve Material | Polyvinylidene Fluoride |
Product Type | SolderGrip |
Number of Conductors | 4 |
Fluid Resistance | Immersion |
Sealable | Yes |
Operating Temperature Range | -40 to 125°C[-40 to 257°F] |
Cable Temperature Rating | 85°C |
