Ranco

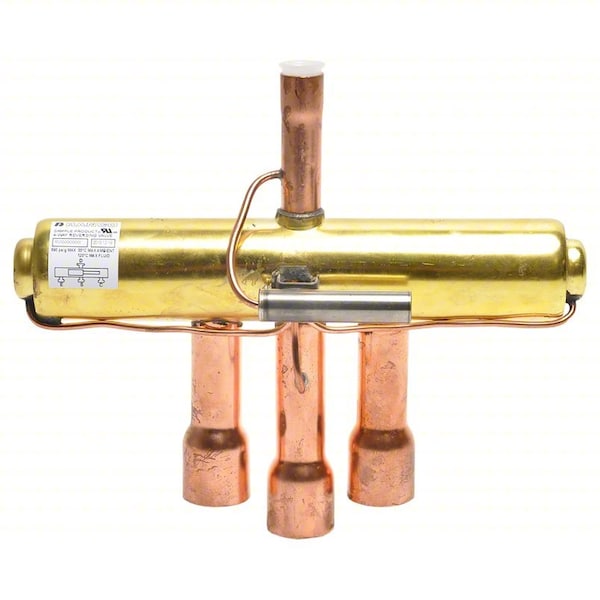

Rev Valve, V Series, 12 ton capacity, 1-1/8" tube suction, 1-1/8" OD

product price: $404.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Application Heat Pumps
  • Leakage Rate - Maximum 15,000 cc/min
  • R410A Capacity - Maximum 15 ton
  • Body Material Brass
  • Discharge Tube Configuration Offset
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Suction Connection Size 1 3/8 in
Discharge Connection Size 1 1/8 in

Details

Item Heat Pump Reversing Valve
Application Heat Pumps
Leakage Rate - Maximum 15,000 cc/min
R410A Capacity - Maximum 15 ton
Body Material Brass
Discharge Tube Configuration Offset
For Media CFC, HCFC, HFC
Body Pattern Four-Way
Includes Solenoid Coil Solenoid Coil Not Included
Discharge Connection Type Socket Weld
R410A Capacity - Minimum 6.3 ton
Operating Pressure - Minimum 0 psi
Operating Temperature - Minimum -40 Degrees F
Operating Pressure - Maximum 690 psi
Suction Tube Configuration Straight
Operating Temperature - Maximum 158 Degrees F
R22 Capacity - Maximum 12 ton
Suction Connection Type Socket Weld
Tube Material Copper
Includes Pilot Valve Pilot Valve Included
R22 Capacity - Minimum 6 ton

Description

Heat Pump Reversing Valve, Application Heat Pumps, Body Material Brass, Body Pattern Four-Way, Discharge Connection Size 1 1/8 in, Discharge Connection Type Socket Weld, Discharge Tube Configuration Offset, For Media CFC, HCFC, HFC, Includes Pilot Valve Pilot Valve Included, Includes Solenoid Coil Solenoid Coil Not Included, Leakage Rate - Maximum 15,000 cc/min, Operating Pressure - Maximum 690 psi, Operating Pressure - Minimum 0 psi, Operating Temperature - Maximum 158 Degrees F
