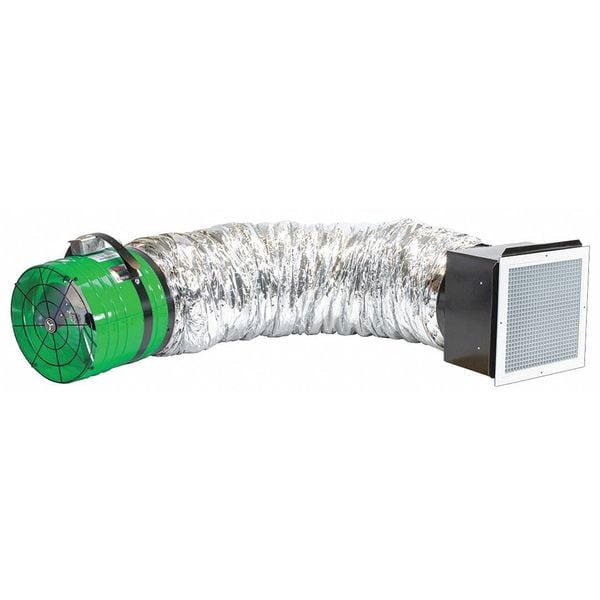

Whole House Fan, 1468 CFM, 61W

Mfr # QC ES-1500
Zoro # G1896819

$699.00

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Type Direct Drive
Blade Dia. 14 in
Fan Voltage 120V AC
Coverage (Square-Ft.) 480 to 715
CFM High 1,434

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Quietcool
MFR # QC ES-1500
Zoro # G1896819
UPC #
811658020957
Country of Origin United States
Category Whole House Fans

Dimensions

Blade Dia.	14 in
Power Cord Length (Ft.)	6
For Cut-Out Width	14 1/2 in
Overall Depth	16 in
Grille Length	16 in
Overall Diameter	15 in
Duct Diameter	14 in
Grille Width	16 in
Overall Width	16 in
For Cut-Out Height	14 1/2 in
Manufacturer Warranty Length	10 yr
Blade Diameter	14 in
Duct Length	6 ft
Power Cord Length	6 ft
Grille L x W	16 in x 16 in

Details

Exhaust/Supply Fan Item	Exhaust Fan
Type	Direct Drive
Fan Voltage	120V AC
Coverage (Square-Ft.)	480 to 715
CFM High	1,434
Housing Finish	Powder Coated
Speed	1
Number of Blades	3
Watts	64.5
Item	Whole House Fan
Motor Type	Electronically Commutated
Agency Compliance	UL Listed
Housing Material	Steel
Mounting Location	Ceiling
Shutter Cut Out (In.)	14 in x 14 in
Hz	60
Drive Package Included	No
Phase	1
Includes	6 ft Duct, Accessory Bag, Damper Box, Window Lock
Electrical Connection	Hardwired
Assembled	Unassembled
Motor Enclosure	Open Dripproof
Number of Fans	1
Noise Level @ 0.100 in SP @ 5 ft	1.9 sones
Frame Material	Steel
Includes Grill	Yes
Standards	UL Listed
Supply Airflow @ 0.000 in SP	1,434 cfm
Includes Dehumidistat	No
Frequency	60 Hz
Wattage	64.5 W
Blade Material	Steel
Fan Style	Whole-House
Vent Design	Ducted
Exhaust Airflow @ 0.000 in SP	1,434 cfm
Nameplate Voltage	120V AC
Speed Controllable	No
Maximum Noise Level	1.3 sones
Exhaust Airflow @ 0.100 in SP	1,434 cfm
Control Type	Switch
Free Area	1.9 sq ft
Maximum Airflow	1,434 cfm
Full Load Current	0.91 A
Drive Type	Direct Drive
Guard Material	Steel
Noise Level @ 0.000 in SP @ 5 ft	1.9 sones
Includes Motor	Yes
Number of Speeds	1
Duct Shape	Round
Guard Finish	Powder Coated
Ventilation Type	Exhaust
Guard Type	Exhaust
Maximum Coverage Area	717 sq ft
For High-Static Pressure Applications	Yes
Material	Steel Blade with Steel Housing
Nominal Voltage	115V AC, Single Phase
Rough Opening Type	Square
Coverage Area	717 sq ft
High-Efficiency Motor	Yes
Quiet Design	Yes
Rough Opening	14 1/2 in Square
Grille Material	Aluminum
Maximum Airflow - Range	0 to 2,999 cfm

Description

Whole House Fan, Mounting Location Ceiling, Quiet Design Yes, Number of Speeds 1, Nameplate Voltage 120V AC, Speed Controllable No, Blade Diameter 14 in, Drive Type Direct Drive, Maximum Airflow 1,434 cfm, Maximum Noise Level 1.3 sones, Wattage 64.5 W, Coverage Area 717 sq ft, Rough Opening Type Square, For High-Static Pressure Applications Yes, High-Efficiency Motor Yes, Number of Blades 3, Blade Material Steel, Housing Material Steel, Grille Material Aluminum, Standards UL Listed

Restrictions

This item has been restricted from sale in the following states: AS, GU, HI, PR, VI
