Professional Plastics

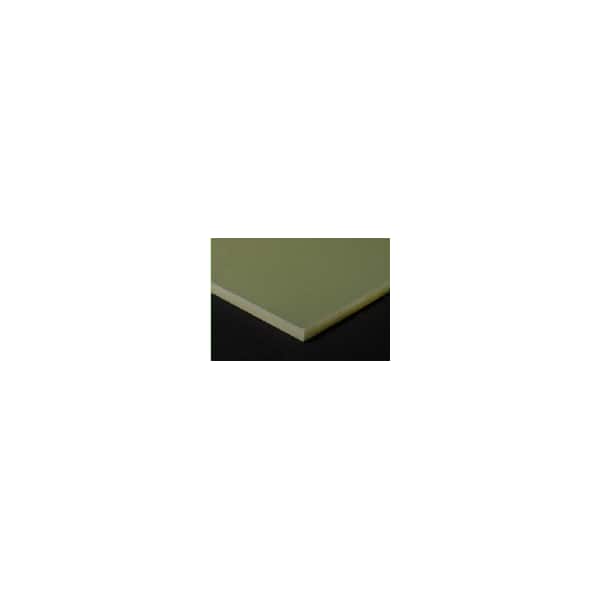

Natural FR-4 Sheet, 0.020 Thick, 36 X 48
Mfr # SFR4NA.020-36X48
Zoro # G300907495
product price: $56.99
/ea
$56.99
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Material G-10/FR-4
- Color Natural
- Weight 4
- Height 0.02
- CoLT Expansion (x 10-5 in./in./Deg:F) 0.66
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Professional Plastics
- MFR # SFR4NA.020-36X48
- Zoro # G300907495
- Country of Origin Multiple
- Category Plastic Sheets
Dimensions
Length | 48 |
Width | 36 |
Height | 0.02 |
Details
Material | G-10/FR-4 |
Color | Natural |
Weight | 4 |
CoLT Expansion (x 10-5 in./in./Deg:F) | 0.66 |
Max. Recommended Use Temp (Deg:F) | 284 |
Tensile Strength (psi @ 73 Deg;) | 38000 |
UL94 Flammability Rating Method: UL 94 | H-B |
Specific Gravity (73 Deg: g/cm3) | 1.8 |
Thermal Conductivity (BTU-in/ft²-hr-°F) | 2 |
Dielectric Strength (volts/mil) | 800 |
Flexural Strength (psi @ 73 Deg: F) | 65000 |
Description
G-10/FR-4 is a thermosetting industrial laminate consisting of a continuous filament glass cloth material with an epoxy resin binder. It has characteristics of high strength, excellent electrical properties and chemical resistance not only at room temperature but also under humid or moist conditions. G-10/FR-4 glass epoxy laminate meets the specifications of Mil-I-24768/27 G-10 & FR-4 also meet LP 509 & MIL P 18177 Type GEE Maximum Continuous Operating Temperature: 285°F Commonly referred to as Micarta, Bakelite and more.
Restrictions
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
