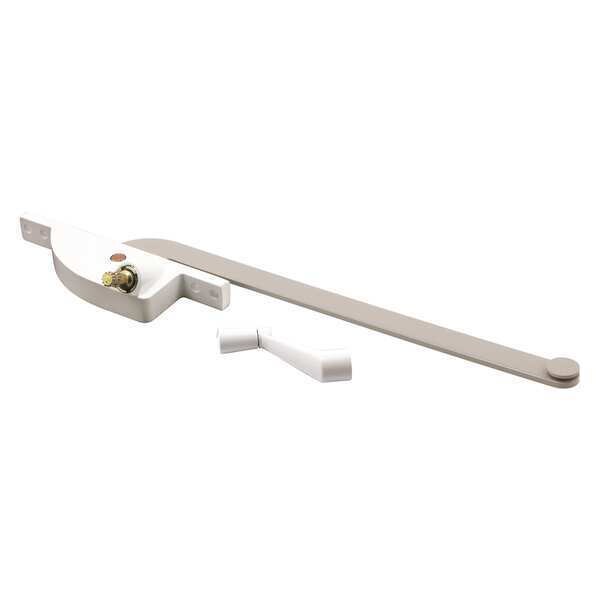

Steel Casement Operator, 9 in. Arm, Teardrop Housing, White, Left Hand (Single Pack)
Mfr # H 4294
Zoro # G0614159
Key Features
- Finish White
- Material Die Cast
- Length (In.) 9 in.
- Height (In.) 13 1/4 in
- Base Size (In.) 4-3/4
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Primeline Tools
- MFR # H 4294
- Zoro # G0614159
- UPC # 49793342942
- Country of Origin China
- Category Window Operators & Covers
Dimensions
Length (In.) | 9 in. |
Height (In.) | 13 1/4 in |
Base Size (In.) | 4-3/4 |
Width (In.) | 4-1/4 |
Details
Finish | White |
Material | Die Cast |
Strike (In.) | 13-7/8 |
Projection (In.) | 11/16 in |
Type | Teardrop Housing |
Hardware | Included |
Includes | Mounting Hardware |
Item | Left Hand Window Operator |
Color | White |
Description
This casement operator is constructed of a diecast body, a hardened steel arm (with a steel guide button at 9/16 inch in diameter), and a Case-Hardened worm gear mechanism that comes in a corrosion resistant plating. It features a teardrop-shaped housing and an operator crank handle, and comes finished in a white painted color. This casement operator is left-handed, determined when viewing the window from the inside looking out. It is a face-mounted design that installs on older, crank-out casement, steel window frames with 3-7/8 inch and 4-3/4 inch mounting hole centers. This high-end quality operator exhibits minimal gear lash, with positive and smooth operation. For the opposite handing of this operator, see Prime-Line parts H 4294 and H 4297. Installation fasteners and a set screw (for affixing the crank handle onto the operator spindle) are included with each operator.
- •Used on left-handed, steel-framed, crank-out casement windows
- •9/16 inch outside diameter guide button, 5/16 inch diameter spindle, 3-7/8 inch and 4-3/4 inch mounting hole centers
- •The handing for this Prime-Line casement operator is determined by viewing the operator from the inside looking out
- •White hardened steel arm with diecast housing and crank
- •Mounting hardware included
- •A Phillips head screwdriver is required for installation
- •Please refer to the line art drawing and compare with your original item before purchasing
