Shop All Pivot Hinges
Primeline Tools
Steel, Bi-Fold Door, Bottom Pivot (2 Pack)
Mfr # N 6546
Zoro # G3341368
product price: $3.69
/pr
Sold in multiples of 2 for $7.38
$7.38
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Material Steel
- Width (In.) 3 3/4 in
- Length (In.) 1 9/16 in
- Finish Zinc Plated
- Depth (In.) 1 3/64 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Primeline Tools
- MFR # N 6546
- Zoro # G3341368
- UPC # 49793065469
- Country of Origin China
- Category Pivot Hinges
Dimensions
Width (In.) | 3 3/4 in |
Length (In.) | 1 9/16 in |
Depth (In.) | 1 3/64 in |
Height (In.) | 5 13/32 in |
Outside Dia. | 7/16", 1/4" |
Shaft Length | 1-1/16 in |
Roller Width/Dia. (In.) | No Roller |
Mounting Hole Size (In.) | 3/16 in |
Wheel Diameter | 7/8 in |
Details
Item | Closet Door Bottom Pivot |
Material | Steel |
Finish | Zinc Plated |
Type | Bi-Fold Door |
Color | Silver |
Mounting | Door Bottom |
Bearings | Steel |
Max. Weight (Lb.) | 100 lb |
Construction | Steel |
Includes | Hardware |
Requires | Hardware |
Hardware | Included |
Number of Wheels | 0 |
For Use With | Used by Acme, Cox as Well as Many Other Bi-Fold Door Manufacturers; Fits Doors 1" to 1-3/8" Thick |
Description

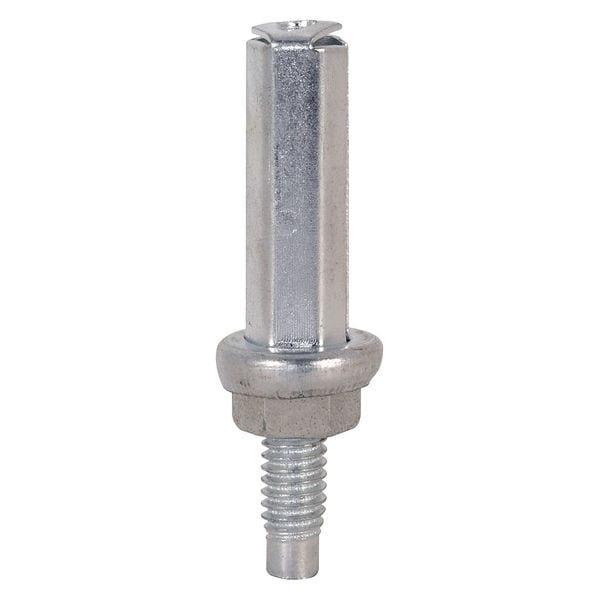

This is a bottom mount pivot used on Acme, Cox and a wide variety of different bi-fold doors. The steel base houses a 1/4 inch pivot with a hex head nut for adjustment. It fits 1 inch to 1-3/8 inch thick bi-fold doors weighing up to 50 lbs. each.
- •Used by Acme, Cox and a wide variety of other bi-fold door manufacturers
- •Maximum safe load capacity is 50 lbs.
- •Fits doors 1 inch to 1-3/8 inch thick
- •Steel construction
- •Bottom mount design
- •Please refer to the line art drawing and compare with your original item before purchasing
