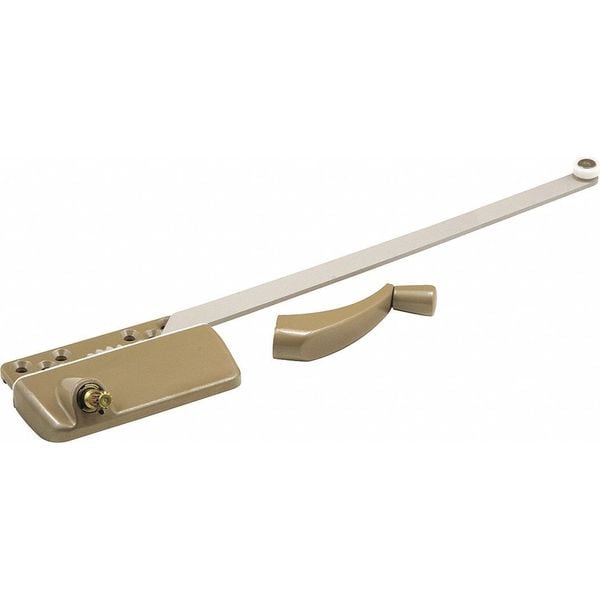

Right Hand Window Operator, 13-1/2" L
Mfr # TH 23030
Zoro # G0593813
Key Features
- Finish Coppertone
- Material Die Cast
- Length (In.) 13-1/2 in.
- Height (In.) 19 1/4 in
- Base Size (In.) 3
Product Information
- Brand Primeline Tools
- MFR # TH 23030
- Zoro # G0593813
- UPC # 49793230300
- Country of Origin China
- Category Window Operators & Covers
Dimensions
Length (In.) | 13-1/2 in. |
Height (In.) | 19 1/4 in |
Base Size (In.) | 3 |
Width (In.) | 4-3/4 |
Details
Finish | Coppertone |
Material | Die Cast |
Strike (In.) | 11-3/8 |
Projection (In.) | 11/16 in |
Type | Casement Window |
Color | Gold |
Hardware | Included |
Item | Right Hand Window Operator |
Includes | Mounting Hardware |
Description
This casement operator is constructed of a diecast body, a hardened steel arm (with a steel guide button at 9/16 inch in diameter), and a case-hardened worm gear mechanism that comes in a corrosion-resistant plating. It features a square-shaped housing and an operator crank handle, and comes finished in a coppertone colored baked-on enamel finish. This casement operator is right-handed, determined when viewing the window from the outside looking inch This operator is a surface-mounted crank-out design for casement windows and mounts with six fasteners. This high-end quality operator exhibits minimal gear lash, with positive and smooth operation. For the opposite handing of this operator, see Prime-Line part TH 23027-1. Installation fasteners and a set screw (for affixing the crank handle onto the operator spindle) are included with each operator. This operator provides a full 90-degree opening and disconnects easily from the sash. Use Prime-Line part TH 22397 for replacement track.
- •Used to replace worn or missing single arm casement operators (right hand - as viewed from the exterior looking in)
- •The handing for this casement operator is determined by viewing the operator from the outside looking in
- •Hardened steel arm with high pressure diecast zinc case, crank handle and knob
- •The case and crank of this operator come in a coppertone-colored baked enamel finish. Drive worm and gear are protected with a corrosion-resistant finish that is gray in color
- •Easy to install with the installation instructions, fasteners, and a few simple tools
