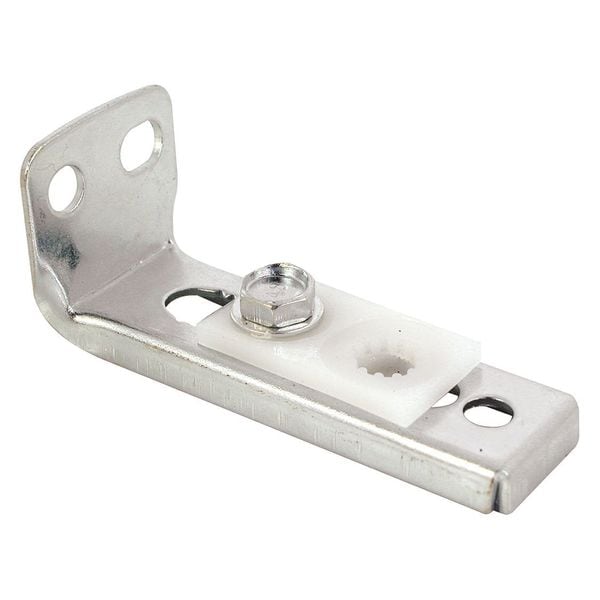

Bi-Fold Door Pivot Bracket, Floor and Jamb Mount, Acme (Single Pack)
Mfr # N 6543
Zoro # G3341480
product price: $2.85
/ea
Sold in multiples of 3 for $8.55
$8.55
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Type Bi-Fold Door
- Width (In.) 3 3/4 in
- Material Stamped Steel, Nylon
- Length (In.) 2 15/16 in
- Depth (In.) 1 35/64 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Primeline Tools
- MFR # N 6543
- Zoro # G3341480
- UPC # 49793065438
- Country of Origin China
- Category Closet Shelf Brackets
Dimensions
Width (In.) | 3 3/4 in |
Length (In.) | 2 15/16 in |
Depth (In.) | 1 35/64 in |
Height (In.) | 5 13/32 in |
Shaft Length | 1-9/16 in |
Roller Width/Dia. (In.) | No Roller |
Mounting Hole Size (In.) | 3/16 in |
Details
Item | Closet Door Pivot Bracket |
Type | Bi-Fold Door |
Material | Stamped Steel, Nylon |
Finish | Zinc Plated |
Color | Silver |
For Use With | Used by Acme and Several Other Bi-Fold Manufacturers; Used with 1" to 1-3/8" Thick Doors |
Bearings | Steel |
Max. Weight (Lb.) | 100 lb |
Number of Wheels | 0 |
Requires | Hardware |
Construction | Steel |
Includes | Fasteners |
Hardware | Included |
Mounting | Door Floor/ Jamb |
Description
This is a floor and jamb mounted bottom pivot bracket. Typically used on Acme bi-fold doors and a variety of other door manufacturers. Constructed from stamped steel and comes with a zinc plated finish. It features an adjustable self-lubricating nylon bushing. Can be used on doors 1 inch to 1-3/8 inch thick. The maximum safe weight capacity is 50 lbs. per door. All the necessary mounting hardware is included for a quick and easy installation.
- •Used by Acme and several other bi-fold manufacturers
- •Used with 1 inch to 1-3/8 inch thick doors
- •Floor and jamb mounted
- •Stamped steel base
- •For doors up to 50 lbs.
- •Mounting hardware included
- •A Phillips head screwdriver is required for installation
- •Please refer to the line art drawing and compare with your original item before purchasing
