9 in., Bronze Diecast, Casement Operator, Left Hand, Square Type (Single Pack)
Mfr # H 3517
Zoro # G0592982
product price: $21.39
/ea
$21.39
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Finish Bronze
- Material Die Cast
- Length (In.) 9 in.
- Height (In.) 13 1/4 in
- Base Size (In.) 4-3/4
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Primeline Tools
- MFR # H 3517
- Zoro # G0592982
- UPC # 49793035172
- Country of Origin China
- Category Window Operators & Covers
Dimensions
Length (In.) | 9 in. |
Height (In.) | 13 1/4 in |
Base Size (In.) | 4-3/4 |
Width (In.) | 3-7/8 |
Details
Finish | Bronze |
Material | Die Cast |
Strike (In.) | 13-7/8 |
Projection (In.) | 11/16 in |
Type | Square Housing |
Includes | Mounting Hardware |
Color | Brown |
Item | Left Hand Window Operator |
Hardware | Included |
Description

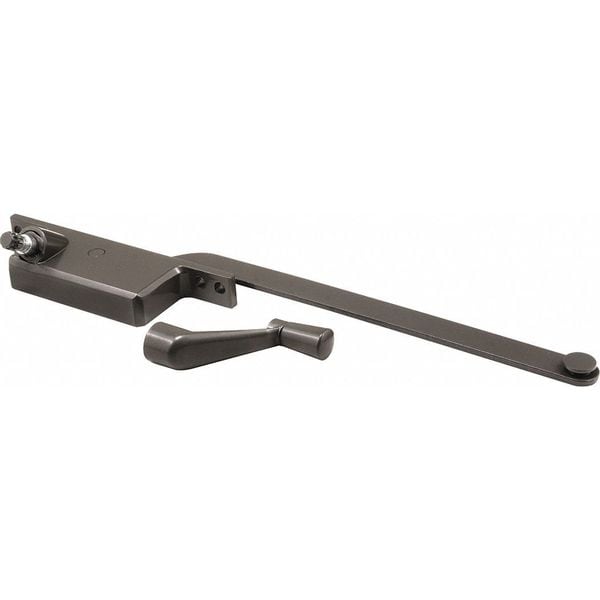

This casement window operator is a left-handed aluminum square body type. It has a 9 inch steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the Prime-Line part H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 3/8 inch crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included. Mounting holes available are 3-7/8 inch and 4-3/4 inch apart.
- •Left handed square body crank handle (viewed from inside looking out)
- •Mounting holes are 3-7/8 inch and 4-3/4 inch on center
- •Arm is 9 inch from middle of the guide button to the middle of the crank operator while closed
- •Heavy duty diecast zinc construction with a bronze finish
- •Steel worm drive gear for durability
