8 in., Aluminum Diecast, Casement Operator, Left Hand, Teardrop Type (Single Pack)
Mfr # H 3501
Zoro # G0570549
product price: $23.25
/ea
$23.25
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Finish Aluminum
- Material Steel
- Length (In.) 8 in.
- Height (In.) 13 1/4 in
- Base Size (In.) 4-3/4
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Primeline Tools
- MFR # H 3501
- Zoro # G0570549
- UPC # 49793035011
- Country of Origin China
- Category Window Operators & Covers
Dimensions
Length (In.) | 8 in. |
Height (In.) | 13 1/4 in |
Base Size (In.) | 4-3/4 |
Width (In.) | 3-7/8 |
Details
Finish | Aluminum |
Material | Steel |
Strike (In.) | 13-7/8 |
Projection (In.) | 11/16 in |
Type | Teardrop Housing |
Includes | Mounting Hardware |
Item | Left Hand Window Operator |
Hardware | Included |
Color | Gray |
Description

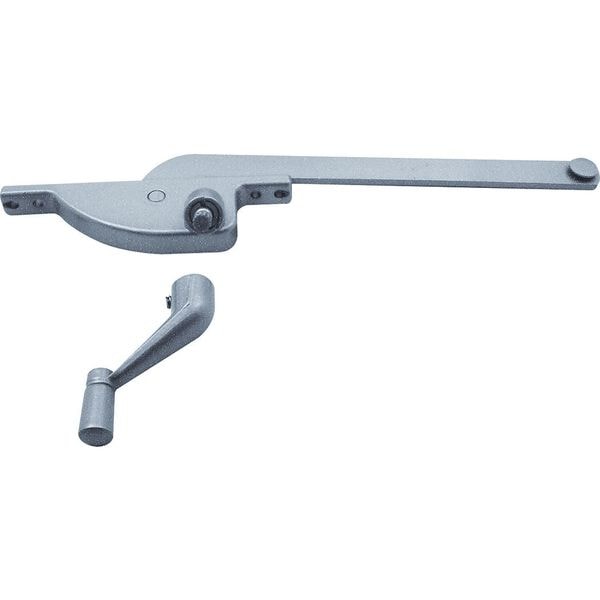

This casement window operator is a left-handed diecast teardrop body type. It has a 7 inch steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the Prime-Line part H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 3/8 inch crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included. Mounting holes available are 3-7/8 inch and 4-3/4 inch on center.
- •Left handed teardrop body crank handle (viewed from inside looking out)
- •Mounting holes are 3-7/8 inch and 4-3/4 inch on center
- •Arm is 7 inch from middle of the guide button to the middle of the crank operator while closed
- •Heavy duty diecast zinc construction with an aluminum finish
- •Steel worm drive gear for durability
- •Matching crank handle is included
- •A Phillips head screwdriver is required for installation
- •Please refer to the line art drawing and compare with your original item before purchasing
