Shop All Pivot Hinges
Primeline Tools
3/8 in. Bi-Fold Door Top/Bottom Pivot and Guide Set (1 Set)
Mfr # N 7269
Zoro # G3344271
product price: $3.15
/ea
$3.15
Free Shipping on orders over $50
after you
Free 30-Day Returns
Key Features
- Width (In.) 3 3/4 in
- Material Steel, Nylon
- Finish White
- Depth (In.) 45/64 in
- Height (In.) 5 23/64 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Primeline Tools
- MFR # N 7269
- Zoro # G3344271
- UPC # 49793372697
- Country of Origin China
- Category Pivot Hinges
Dimensions
Width (In.) | 3 3/4 in |
Depth (In.) | 45/64 in |
Height (In.) | 5 23/64 in |
Shaft Length | 45/64 in |
Roller Width/Dia. (In.) | No Roller |
Outside Dia. | 3/8", 15/32" |
Length (In.) | 1 5/8 in |
Mounting Hole Size (In.) | 3/16 in |
Details
Item | Closet Door Bottom Pivot Guide |
Material | Steel, Nylon |
Finish | White |
Type | Bi-Fold Door |
Color | White |
Mounting | Door Bottom |
Number of Wheels | 0 |
Hardware | Included |
For Use With | Fits Into the Mfr. No: N 6674 Bottom Pivot Bracket |
Bearings | Steel |
Construction | Steel |
Requires | Hardware |
Description

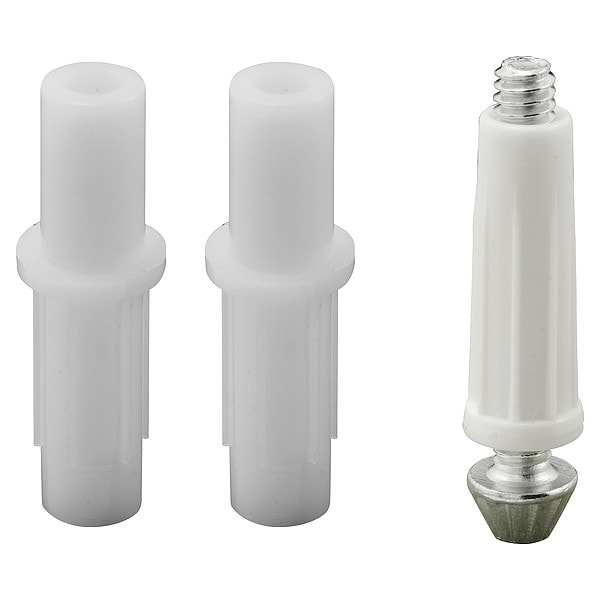

This is a combination set of the bottom pivot and bottom/top guide typically used on a variety of wood bi-fold doors. They are both set a in 3/8 inch diameter plastic housing. The bottom pivot has a tapered grooved tip that fits into the Prime-Line part N 6674 bottom pivot bracket. The 3/8 inch guide is may be used as either the guide pin or as a top pivot depending on the bi-fold door design. To install, lightly tap them into the pre-drilled top mount holes. Used by a variety of bi-fold door manufacturers.
- •Used by a variety of bi-fold door manufacturers
- •Tapered and grooved tip on the bottom pivot pin
- •3/8 inch outer diameter housings
- •Steel screw and white plastic housing
- •Push-in installation
- •Easy to install
- •A soft mallet may be required for installation
- •Please refer to the line art drawing and compare with your original item before purchasing
