Shop All Roller Chains
Powerdrive

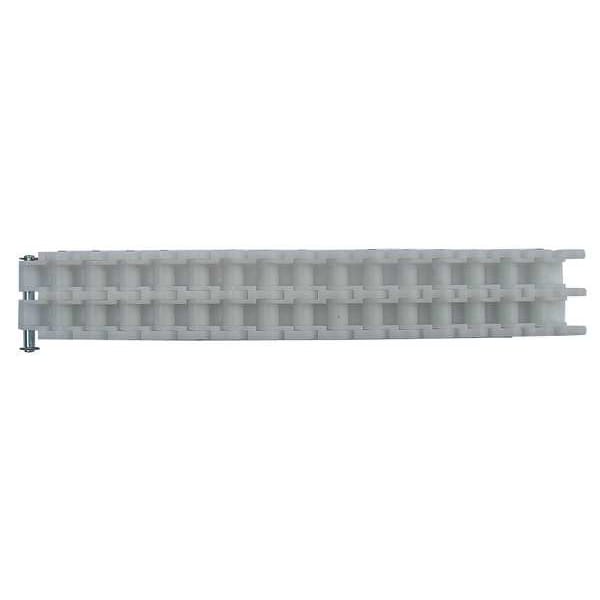

Delrin Coupling Chain, 2.37 In

product price: $36.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Chain Overall Width 1.25 in
  • For Use With (2) 40 Pitch 12 Teeth Sprockets
  • Angular Misalignment Tolerance 1/2 Degrees (20T-24T), 1 Degrees (10T-19T)
  • Width (In.) 1.25 in
  • Outside Dia. (In.) 2.37 in
See all product information
Get 10% Off Your First Order
Real Support From Real People Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
visa mastercard american express discover paypal
Net 30

Product Information

Dimensions

Chain Overall Width 1.25 in
Width (In.) 1.25 in
Outside Dia. (In.) 2.37 in
Overall Length 6 in

Details

Item Delrin Coupling Chain
For Use With (2) 40 Pitch 12 Teeth Sprockets
Angular Misalignment Tolerance 1/2 Degrees (20T-24T), 1 Degrees (10T-19T)
Material Delrin
Pitch 1/2
End Float Tolerance (In.) 0.06 in
Sprocket (2) 40 Pitch 12 Teeth Sprockets Required
Max. Number of Teeth 12
HP Rating @ 100 RPM 0.51 hp
Temp. Range (F) -25 Degrees to 150 Degrees
Coupler Pin Slip-fit
Max. Parallel Misalignment (In.) 0.005 in
Includes (2) 40 Pitch 12 Teeth Sprockets
Chain Number 40
Maximum Operating Temperature 150 Degrees F
Maximum Horsepower at 100 RPM 0.51 hp
Minimum Operating Temperature -25 Degrees F
For Number of Teeth 12
Maximum Horsepower at 500 RPM 2.55 hp
Number of Links 12

Description

Delrin Coupling Chain, Chain Number 40, Pitch 1/2, Number of Links 12, Chain Overall Width 1.25 in, For Number of Teeth 12, Overall Length 6 in, Maximum Horsepower at 500 RPM 2.55 hp, Includes (2) 40 Pitch 12 Teeth Sprockets, Material Delrin, Maximum Operating Temperature 150 Degrees F, Minimum Operating Temperature -25 Degrees F, Maximum Horsepower at 100 RPM 0.51 hp
