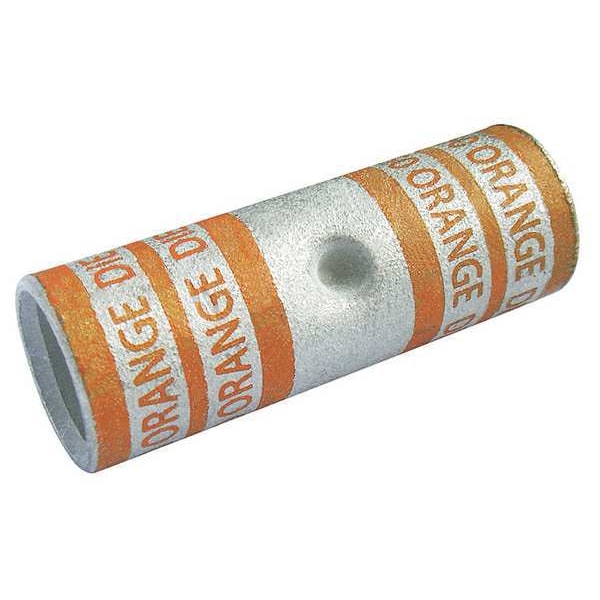

Short Barrel Splice, 1.77 in. L, Orange
Mfr # 22EZ22
Zoro # G2989257
$4.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Material Copper
- Length 1.77 in
- Color Code Orange
- Overall Length 1.77 in
- Outside Dia. 0.63 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Power First
- MFR # 22EZ22
- Zoro # G2989257
- UPC # 190735587836
- Country of Origin China
- Category Splicing Connectors
Dimensions
Length | 1.77 in |
Overall Length | 1.77 in |
Outside Dia. | 0.63 in |
Length (Straight Wireway) | 1.77 in |
Barrel Outside Diameter | 0.63 in |
Strip Length | 29/32 in |
Barrel Inside Diameter | 0.51 in |
Minimum Wire Size | 3/0 AWG |
Maximum Wire Size | 3/0 AWG |
Maximum Wire Insulation Diameter | 0.63 in |
Barrel Size | Short |
Description
Short-Barrel Splice, Barrel Finish Tin Plated, Barrel Size Short, Color Code Orange, Die Code 50, For Conductor Material Copper, For Wire Type Stranded, Material Copper, Maximum Voltage 600 V, Minimum Wire Size 3/0 AWG, Maximum Wire Size 3/0 AWG, Number of Crimps 4, Overall Length 1.77 in, Maximum Conductors 1, Maximum Operating Temperature 300 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards ANSI, UL 486A-486B, Barrel Inside Diameter 0.51 in, Barrel Outside Diameter 0.63 in
