Shop All Power Relays
Potter-Brumfield

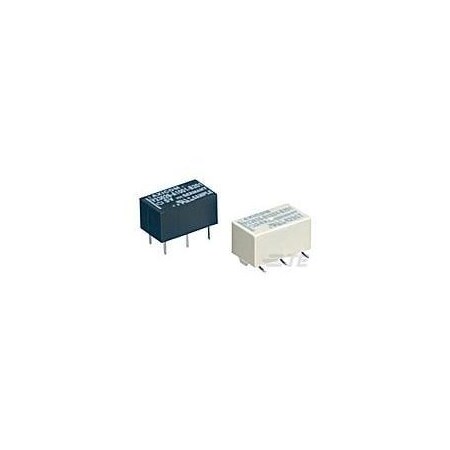

V23026A1002B201
Mfr # V23026A1002B201
Zoro # G200969753
product price: $12.15
/ea
Sold in multiples of 40 for $486.00
$486.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Power Consumption - Relay 65 to 130 mW
- Electrical Connection - Power Relay Through Hole
- Features Bifurcated/Twin Contacts
- Body Height - Relay 0.272 in
- Body Width - Relay 0.2988 in
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Potter-Brumfield
- MFR # V23026A1002B201
- Zoro # G200969753
- Country of Origin Germany
- Category Power Relays
Dimensions
Body Height - Relay | 0.272 in |
Body Width - Relay | 0.2988 in |
Body Depth - Relay | 0.512 in |
Details
Item - Relay | P1 Relay V23026 |
Power Consumption - Relay | 65 to 130 mW |
Electrical Connection - Power Relay | Through Hole |
Features | Bifurcated/Twin Contacts |
Number of Poles | 1 |
Contact Limiting Continuous Current | 1A |
Coil Resistance | 2250 Ω |
Contact Limiting Short-Time Current | 1A |
Insulation Clearance | .75 mm [ .0295 in ] |
Insulation Creepage | .75 mm [ .0295 in ] |
Contact Limiting Making Current | 1A |
Switching Current | 10mA @ .02V |
Contact Voltage Rating | 150 VAC [ 125 VDC ] |
Operating Temp. Range | -40 to 85 °C |
Contact Limiting Breaking Current | 1A |
Protection Category | RTIII |
Coil Type | Monostable, DC, Polarized |
Switching Voltage | 150 VAC [ 125 VDC ] |
Dielectric Voltage | 1500 Vrms Coil and Contact; 500 Vrms Open Contacts |
