Shop All Solid State Relays
Potter-Brumfield

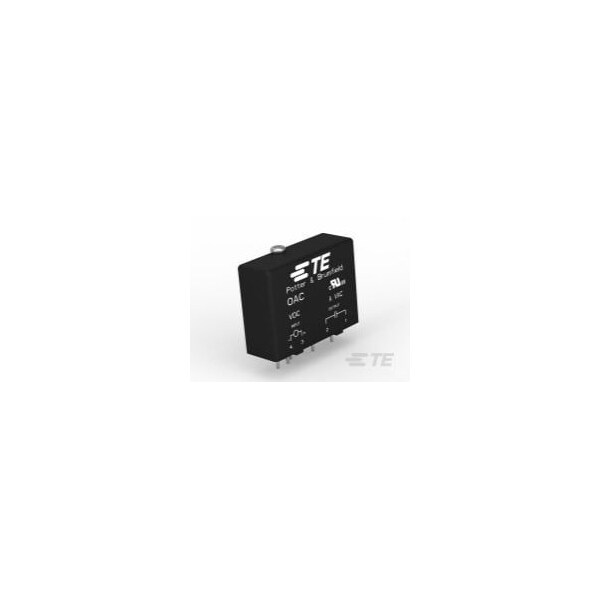

OUTPUT AC MODULE 3A 240V AC -5V DC IP
Mfr # OAC-5A
Zoro # G200968114
product price: $23.15
/ea
Sold in multiples of 4 for $92.60
$92.60
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Case Color Black
- Contact Current Rating (A) 3
- Output Switching Zero
- Output Voltage (Max) (V) 280
- Output Type AC
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Potter-Brumfield
- MFR # OAC-5A
- Zoro # G200968114
- Country of Origin Mexico
- Category Solid State Relays
Dimensions
| Dimensions (L x W x H) (Approximate) | 43.2 x 15.2 x 31.8 mm [ 1.702 x .598 x 1.252 in ] |
Details
| Case Color | Black |
| Contact Current Rating (A) | 3 |
| Output Switching | Zero |
| Output Voltage (Max) (V) | 280 |
| Output Type | AC |
| Output Current (Min) (A) | 0.05 |
| Product Type | Relay |
| Insulation Initial Dielectric Between Contacts and Coil (Vrms) | 4000 |
| Input Voltage Typical (VDC) | 5 |
| Output Current Rating (Arms) | .05 to 3 |
| Coupling | Optical |
| Operating Temperature Range (°C) | -30 to 80 |
| Mounting Type | Board Mount |
| Termination Type | Printed Circuit Terminals |
| Switch Arrangement | 1 Form A (SPST-NO) |
| Housing Style | Industry Standard |
| Relay Type | Input/Output Module |
| R-Switch & slimSSR Relays | No |
| Input Voltage (VDC) | 3 to 8 |
| Output Voltage Rating (AC Relays) | 24 to 280 |
| Contact Arrangement | 1 Form A (SPST-NO) |
