Shop All Solid State Relays
Potter-Brumfield

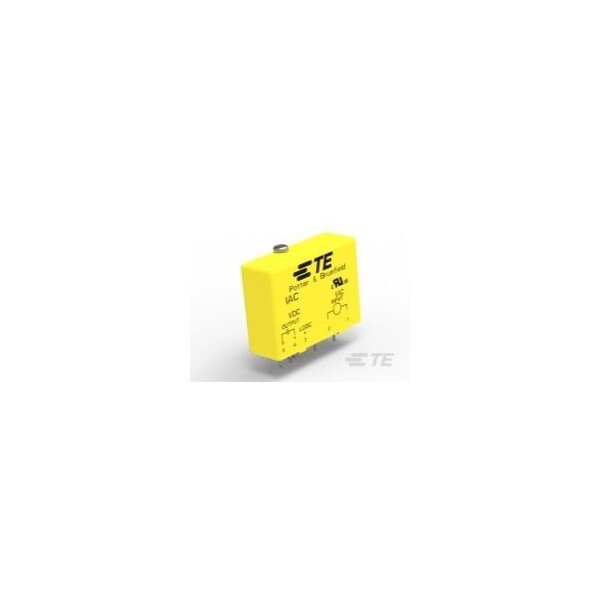

INPUT AC MODULE 5V DC LOGIC- 24VAC IP
Mfr # IAC-5E
Zoro # G100967811
product price: $24.79
/ea
Sold in multiples of 400 for $9,916.00
$9,916.00
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Input Voltage 18 to 36 VAC [ 18 to 36 VDC ]
- Case Color Yellow
- Contact Current Rating (A) 0.05
- Mounting Type Board Mount
- Termination Type Printed Circuit Terminals
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Potter-Brumfield
- MFR # IAC-5E
- Zoro # G100967811
- Country of Origin Mexico
- Category Solid State Relays
Dimensions
Dimensions (L x W x H) (Approximate) | 43.18 x 15.2 x 31.8 mm [ 1.702 x .598 x 1.252 in ] |
Details
Input Voltage | 18 to 36 VAC [ 18 to 36 VDC ] |
Case Color | Yellow |
Contact Current Rating (A) | 0.05 |
Mounting Type | Board Mount |
Termination Type | Printed Circuit Terminals |
Product Type | Relay |
Coupling | Optical |
Switch Arrangement | 1 Form A (SPST-NO) |
Output Voltage Rating (DC Relays) (VDC) | 30 |
Operating Temperature Range (°C) | -30 to 80 |
Logic Voltage (VDC) | 5 |
Output Voltage (Max) (V) | 30 |
Output Type | DC |
Output Current (Min) (A) | 12A |
Insulation Initial Dielectric Between Contacts and Coil (Vrms) | 4000 |
Output Current Rating (A) | 0.05 |
Relay Type | Input/Output Module |
Housing Style | Industry Standard |
R-Switch & slimSSR Relays | No |
Contact Arrangement | 1 Form A (SPST-NO) |
Input Voltage Typical | 24 VAC [ 24 VDC ] |
