Shop All Wire Connectors
Polaris

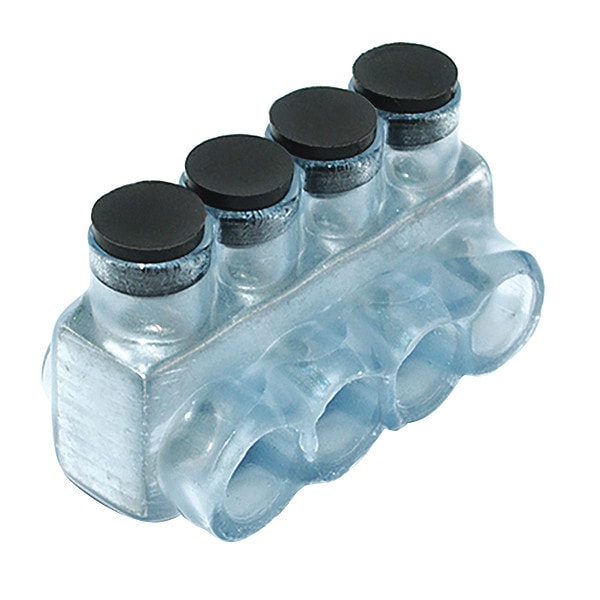

Polaris Multi-Tap Connector, Insulated
Mfr # IPL500-4C
Zoro # G5805294
product price: $86.15
/ea
Free Shipping & Returns
$86.15
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Min. Single Wire Size 4 AWG
- Max. Single Wire Size 500 kcmil
- Max. Voltage 600V AC/DC
- Application Wire Termination; Dry Locations
- Insulation Material Plastisol
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Polaris
- MFR # IPL500-4C
- Zoro # G5805294
- UPC # 662381996893
- Country of Origin United States
- Category Wire Connectors
Dimensions
Min. Single Wire Size | 4 AWG |
Max. Single Wire Size | 500 kcmil |
Overall Length | 5.11 in |
Length | 5.11 in |
Width | 2.5 in |
Stud Size | 5/16 in |
Min. Conductor Size | 500 kcmil |
Max. Conductor Size | 4 AWG |
Length (Straight Wireway) | 5.11 in |
Wire Size Range | 4 AWG - 500 kcmil |
Overall Width | 2.5 in |
Hex Size | 5/16 in |
For Stranded Copper Wire Size - Maximum | 500 kcmil |
For Stranded Copper Wire Size - Minimum | 4 AWG |
Strip Length | 1 3/4 in |
Conductor Al Size Range | 500 MCM-4 AWG |
Conductor Cu Size Range | 500 MCM-4 AWG |
Hex Wrench Size | 5/16 |
Description
Insulated Multitap Connector, Body Material Aluminum, Color Clear, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 500 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 4, RoHS Compliant Yes, Standards cULus, UL 486A, UL 486B, Compatible with Product Type Copper and Aluminum Conductors
