Shop All Manual Air Control Valves
Pneumadyne

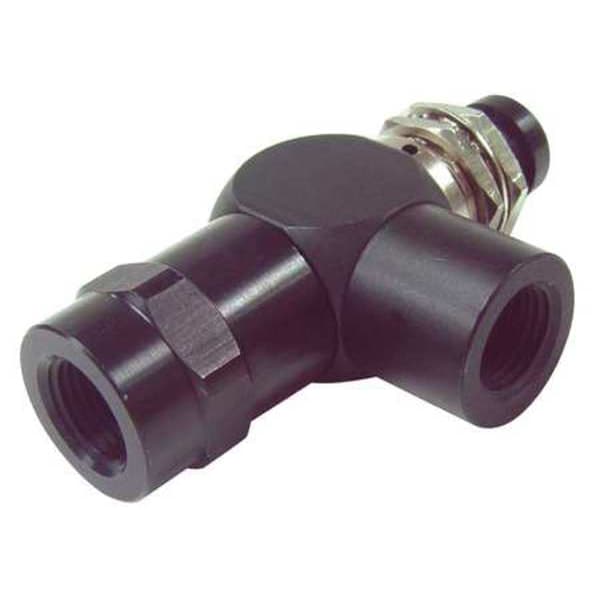

Control Valve, 3-Way, 1/8 In FNPT
Mfr # A11-30-44
Zoro # G4111003
$35.85
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Pipe Size 1/8"
- Valve Ways and Positions 3-Way/2-Position
- Valve Port Size 1/8 in
- Max. Pressure 125 psi
- Body Material Aluminum
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
Product Information
- Brand Pneumadyne
- MFR # A11-30-44
- Zoro # G4111003
- Country of Origin United States
- Category Manual Air Control Valves
Dimensions
Pipe Size | 1/8" |
Valve Port Size | 1/8 in |
Overall Length | 2 1/8 in |
Overall Height | 1 1/8 in |
Overall Width | 5/8 in |
Details
Item | Manual Air Control Valve |
Valve Ways and Positions | 3-Way/2-Position |
Max. Pressure | 125 psi |
Body Material | Aluminum |
Connection | NPT |
Valve Actuator / Return | Button / Spring |
Max. CFM - Valves | 22.1 cfm |
Valve Max. Pressure Rating | 125 psi |
Valve Temp. Range | -20 Degrees to 160 Degrees F |
Series | 11 |
Normally Open / Normally Closed | Normally Closed |
Center Position | Closed |
Temp. Range | -20 Degrees to 160 Degrees F |
Actuator/Return | Button/Spring |
Air Valve Type | 3-Way, 2-Position |
Coefficient of Volume | 0.3 |
CFM | 22.1 |
Description
Manual Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Valve Port Size 1/8 in, Connection NPT, Valve Actuator / Return Button / Spring, Max. CFM - Valves 22.1 cfm, Valve Max. Pressure Rating 125 psi, Valve Temp. Range -20 Degrees to 160 Degrees F, Center Position Closed, Normally Open / Normally Closed Normally Closed, Coefficient of Volume 0.3, Body Material Aluminum, Overall Length 2 1/8 in, Overall Height 1 1/8 in, Overall Width 5/8 in, Series 11, Manual Air Control Valve
