Shop All Corrosion-Resistant Air Blowers

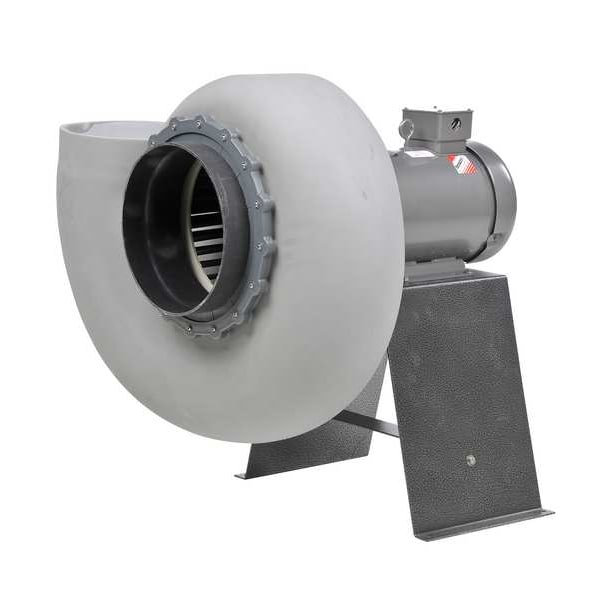

Plastec Blower, Forward Curve, 14 5/8 in

Mfr # P35ST6P300
Zoro # G300690113

$5,056.99

Item requires special delivery charges. A $200.00 per item surcharge will be applied.

Free 30-Day Returns

Key Features

Type Direct Drive Forward Curve
Wheel Dia. (In.) 14.625 in
Voltage 230/460
Motor HP 3 hp
Motor Type General Duty, Three Phase

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Plastec
MFR # P35ST6P300
Zoro # G300690113
Country of Origin United States
Category Corrosion-Resistant Air Blowers

Dimensions

Wheel Dia. (In.)	14.625 in
Height (In.)	46.1 in
Shaft Dia. (In.)	28 mm
Inlet Dia. (In.)	12.4 in
Width (In.)	29.51 in
Outlet Dia. (In.)	12.4 in
Depth (In.)	31.54 in
Wheel Width (In.)	7 in
Overall Depth	31 1/2 in
Outlet Diameter	12 3/8 in
Wheel Diameter	14 5/8 in
Shaft Diameter	28 mm
Housing Height	46 1/16 in
Housing Width	29 1/2 in
Wheel Width	7 in
Overall Width	29 1/2 in
Inlet Diameter	12 3/8 in
Overall Height	46 1/16 in
Outlet Size	12 3/8 in diameter
Wheel Dimensions	14 5/8 in Dia. x 7 in W

Details

Item	Plastec Blower
Type	Direct Drive Forward Curve
Voltage	230/460
Motor HP	3 hp
Motor Type	General Duty, Three Phase
Includes	Motor Mounting Base
Bearing Type	Sealed, Permanently Lubricated Ball
Full Load Amps	8.94/4.47
Agency Compliance	AMCA and CSA certified, UL Listed
Blower RPM	1,140 RPM
Housing Material	Plastic
Wheel Material	Plastic
Hz	50/60 Hz
Wheel Type	Forward-Curved
Max. Inlet Temp. (Deg. F)	140 Degrees F
dBA @ 5 Feet	71 dBA
CFM @ 2.000-In. SP	3000
Housing Finish	Polypropylene
Phase	3
Rotation	CCW
Motor Enclosure	Totally Enclosed Fan Cooled
CFM @ 1.500-In. SP	2000
Motor Frame	112
CFM @ 2.500-In. SP	3000
Max. Ambient Temp. (F)	-13 Degrees F
Motor RPM	1,140 RPM
Motor Horsepower	3 hp
Motor Enclosure Design_Table	Totally Enclosed Motor
Maximum Ambient Temperature	-13 Degrees F
Mounting Orientation	Multiposition
Number of Discharge Positions	2
For Air Type	Contaminated, Damp, Dirty and Dusty, Emergency Smoke Control, Clean Air, High Temperature
Material	Plastic Wheel & Plastic Housing
Includes Motor	Yes
Airflow @ 2.500 in SP Range	3000 to 5000 cfm
Includes Mounting Hardware	Yes
Corrosion Resistant	Yes
Maximum Fan Speed	1,140 RPM
Frequency	50/60 Hz
Minimum Fan Speed	1,140 RPM
Airflow @ 2.500 in SP	3,000 cfm
Mount Type	Motor Mount
Outlet Shape	Round
Flange Type	Non-Flanged
Motor Enclosure Design	Totally Enclosed Fan-Cooled (TEFC)
Drive Type	Direct Drive
Discharge Position	Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Assembly	Assembled
Maximum Inlet Air Temperature	140 Degrees F
Motor Frame Designation	112
Minimum Ambient Temperature	-40 Degrees F
Number of Inlets	1
Includes Drive Package	Yes
Outlet Shape_broad	Round
Airflow @ 1.500 in SP	2,000 cfm
Airflow @ Static Pressures	2,000 cfm @ 1.500 in SP
Airflow @ 1.500 in SP Range	2000 to 4000 cfm
Thermal Overload Protection	Yes
Sound Level	71 dBA @ 5 ft
Nominal Voltage	230/460V AC
Current	8.94/4.47 A
Standards	AMCA Certified, CSA Certified, UL Listed
Nameplate Voltage	230/460V AC
Flange Type_broad	Outlet
Motor Speed	1,140 RPM
Airflow @ 2.000 in SP	3,000 cfm
Inlet Type	Single-Inlet
For Fan Speed (Dependent on Motor)	1,140 RPM to 1,140 RPM
Maximum Static Pressure	2 1/2 in wc
OEM Replacement	No

Description

Plastec Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 14 5/8 in, Airflow @ 1.500 in SP 2,000 cfm, Airflow @ 2.000 in SP 3,000 cfm, Airflow @ 2.500 in SP 3,000 cfm
