Shop All Corrosion-Resistant Air Blowers

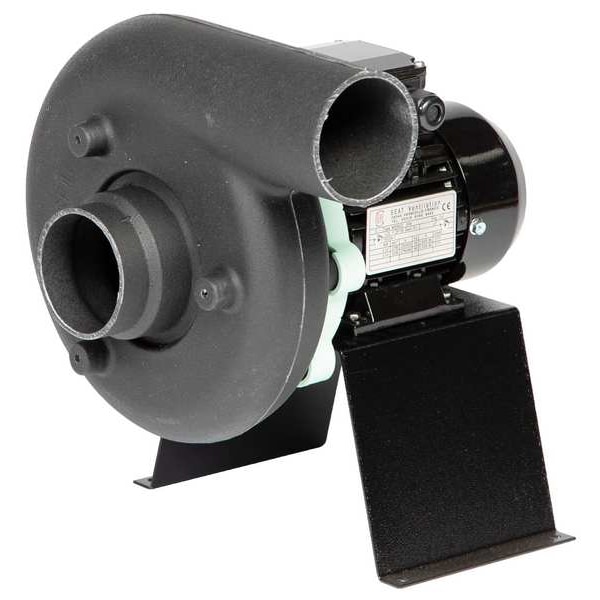

Blower, Forward Curve, 6 in

Mfr # S10SS4P012
Zoro # G700871532

$1,121.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Type Direct Drive Forward Curve
Wheel Dia. (In.) 6 in
Voltage 115/230
Motor HP 0 hp
Motor Type General Duty, Single Phase

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Plastec
MFR # S10SS4P012
Zoro # G700871532
Country of Origin United States
Category Corrosion-Resistant Air Blowers

Dimensions

Wheel Dia. (In.)	6 in
Inlet Dia. (In.)	2.95 in
Height (In.)	17.97 in
Outlet Dia. (In.)	2.95 in
Wheel Width (In.)	1.88 in
Depth (In.)	10.73 in
Width (In.)	8.64 in
Shaft Dia. (In.)	9 mm
Housing Width	8 5/8 in
Shaft Diameter	9 mm
Outlet Size	2 7/8 in diameter
Wheel Width	1 7/8 in
Overall Depth	10 11/16 in
Outlet Diameter	2 15/16 in
Housing Height	17 15/16 in
Inlet Diameter	2 15/16 in
Overall Height	17 15/16 in
Overall Width	8 5/8 in
Wheel Diameter	6 in
Wheel Dimensions	6 in Dia. x 1 7/8 in W

Details

Item	Blower
Type	Direct Drive Forward Curve
Voltage	115/230
Motor HP	0 hp
Motor Type	General Duty, Single Phase
Includes	Motor Mounting Base
CFM @ 0.200-In. SP	30
Phase	1
Blower RPM	1,725 RPM
Full Load Amps	1.7/.085
Bearing Type	Sealed, Permanently Lubricated Ball
Housing Material	Plastic
Housing Finish	Polypropylene
Rotation	CCW
Max. Inlet Temp. (Deg. F)	140 Degrees F
CFM @ 0.500-In. SP	60
Hz	60 Hz
Motor Enclosure	Totally Enclosed Fan Cooled
Max. Ambient Temp. (F)	-13 Degrees F
Wheel Type	Forward-Curved
CFM @ 0.250-In. SP	40
Motor RPM	1,725 RPM
Material	Plastic Wheel & Plastic Housing
dBA @ 5 Feet	56 dBA
Motor Frame	56
Wheel Material	Plastic
Agency Compliance	AMCA and CSA certified, UL Listed
Maximum Ambient Temperature	-13 Degrees F
Inlet Type	Single-Inlet
Maximum Fan Speed	1,725 RPM
Current	1.7/0.085 A
Includes Drive Package	Yes
Motor Speed	1,725 RPM
Flange Type_broad	Outlet
Airflow @ 0.250 in SP	40 cfm
Maximum Inlet Air Temperature	140 Degrees F
Nominal Voltage	115/230V AC
Minimum Ambient Temperature	-40 Degrees F
Sound Level	56 dBA @ 5 ft
Airflow @ Static Pressures	40 cfm @ 0.250 in SP
Number of Discharge Positions	2
Mounting Orientation	Multiposition
Drive Type	Direct Drive
Discharge Position	Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Airflow @ 0.500 in SP	60 cfm
Thermal Overload Protection	Yes
Nameplate Voltage	115/230V AC
Standards	AMCA Certified, CSA Certified, UL Listed
Replacement For	S10SS4P012
Frequency	60 Hz
Flange Type	Non-Flanged
Includes Motor	Yes
Includes Mounting Hardware	Yes
For Air Type	Contaminated, Damp, Dirty and Dusty, Emergency Smoke Control, Clean Air, High Temperature
Mount Type	Motor Mount
Assembly	Assembled
Motor Horsepower	3/25 hp
Motor Frame Designation	56
Outlet Shape_broad	Round
Airflow @ 0.500 in SP Range	0 to 999 cfm
Outlet Shape	Round
Motor Enclosure Design_Table	Totally Enclosed Motor
Maximum Static Pressure	1/2 in wc
Number of Inlets	1
Minimum Fan Speed	1,725 RPM
Motor Enclosure Design	Totally Enclosed Fan-Cooled (TEFC)
For Fan Speed (Dependent on Motor)	1,725 RPM to 1,725 RPM
OEM Replacement	No

Description

Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 6 in, Airflow @ 0.250 in SP 40 cfm, Airflow @ 0.500 in SP 60 cfm
