Shop All Vacuum Pump Parts
Piab

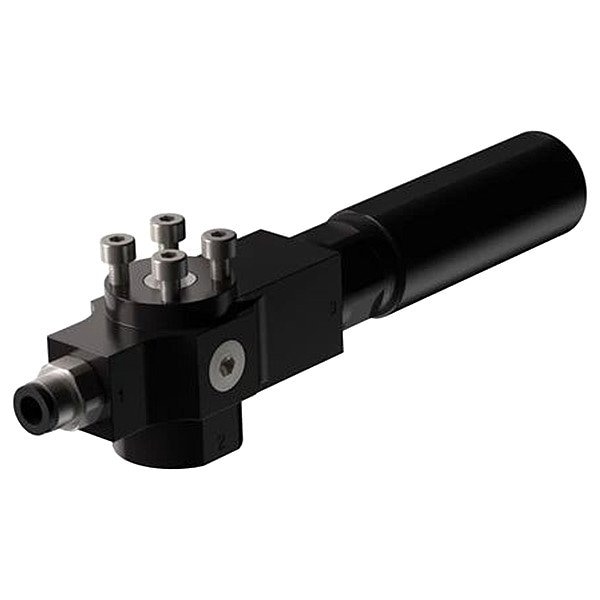

Vacuum Generator, 35 mm Overall H
Mfr # 02.31.209
Zoro # G510064735
product price: $196.99
/ea
Free Shipping & Returns
$196.99
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- Weight 0.15 lb
- Overall Width 159.9 mm
- Overall Height 35 mm
- Pressure Port Gender Female
- Series VGS 4005
Get 10% Off Your First Order
Real Support From Real People
Contact Our U.S.-Based teams
Free 30-Day Returns
Return Policy
Accepted Payment Options
![paypal](https://www.zoro.com/static/assets/img/base/icons/paypal-81447b0e73.png)
Product Information
- Brand Piab
- MFR # 02.31.209
- Zoro # G510064735
- Country of Origin Singapore
- Category Vacuum Pump Parts
Dimensions
Overall Width | 159.9 mm |
Overall Height | 35 mm |
Pressure Port Size | 1/4 in |
Vacuum Port Size | 3/8 in |
Overall Depth | 29 mm |
Details
Item | Vacuum Generator |
Weight | 0.15 lb |
Pressure Port Gender | Female |
Series | VGS 4005 |
Minimum Operating Temperature | 14 Degrees F |
Minimum Flow Rate | 0 scfm |
Vacuum Port Gender | Male |
Vacuum Port Type | G |
Cartridge Type | SX12 |
Standards | RoHS Compliant |
Maximum Vacuum Pressure | 55 kPa |
Maximum Operating Temperature | 176 Degrees F |
Maximum Supply Pressure | 101.5 psi |
Description
Item Vacuum Generator, Cartridge Type SX12, Maximum Operating Temperature 176 Degrees F, Maximum Supply Pressure 101.5 psi, Maximum Vacuum Pressure 55 kPa, Minimum Flow Rate 0 scfm, Minimum Operating Temperature 14 Degrees F, Overall Depth 29 mm, Overall Height 35 mm, Overall Width 159.9 mm, Pressure Port Gender Female, Pressure Port Size 1/4 in, Series VGS 4005, Standards RoHS Compliant, Vacuum Port Gender Male, Vacuum Port Size 3/8 in, Vacuum Port Type G, Weight 0.15 lb
